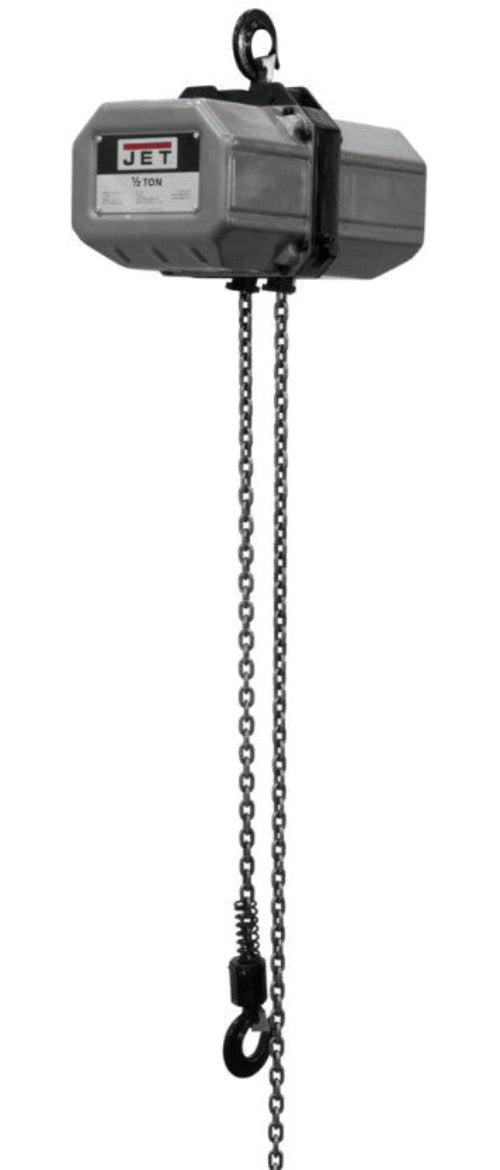

JET 123200 1/2SS-3C-20, 1/2-Ton Electric Chain Hoist 3-Phase 20' Lift

JET SSC Series electric hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET SSC series electric hoist is available in ½ ton to 5 ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).

Features:

• SAFETY
• Overload Protection | Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity
• Reverse Phase Relay | A safety switch that protects the hoist from incorrect wiring of the power supply
• DC Electro-Magnetic Brake | An industry-proven safety feature that secures the load even if power is interrupted to the hoist
• Limit Switches | Upper and lower limiting switches increase safety by preventing the load chain from over traveling
• DURABILITY
• Sealed Gear Train | Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
• Grade 80 Load Chain | Grade 80 black oxide coated load chain for durability
• Control Pendant | 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings
• All Steel Construction | Fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust and debris lengthening the life of the hoist
• PERFORMANCE
• Three Phase | Duty Rating: H4, Duty Cycle: 30%
• Standards | This product complies with ANSI / ASME B30.16 and HST-1 standards
• Certification | Load tested to 125% of capacity with certificate
• Controls | NEMA 4X compliant push button control pendants
• JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are NOT rated or designed for outdoor use or wet environments

Specifications:

• Load Capacity | 1/2 ton
• Lift | 20 ft
• Motor Power | 1-1/5 hp
• Motor Voltage | 230 / 460
• Motor | 1-1/3 HP, 460V, 3 Ph
• Motor Phase | 3
• Load Chain Dimensions | 6.3mm x 19mm
• Number of Falls | 1
• Duty Cycle Rating | H4
• Duty Cycle | 30%
• Max. On Time (Min./Hr.) | 18
• Max. Number of Starts (Per Hr.) | 180
• Lifting Speed (FPM) | 31
• Headroom | 20-3/16"
• Weight | 110 lbs
• Weight for Additional 1 Ft. of Lift | 0.8 lb

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
