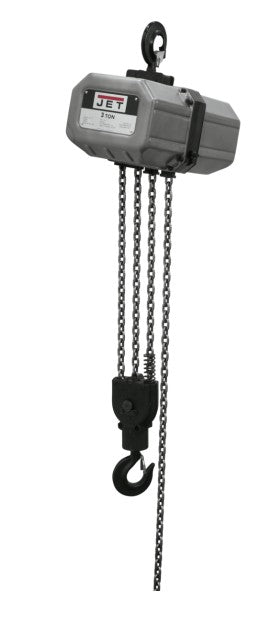

JET 3SS-1C-10, 3 Ton Chain Hoist

JET SSC Series electric hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET SSC series electric hoist is available in ½ ton to 5 ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).

Features:

• Designed for Commercial and industrial applications
• 1/2 ton to 5 ton capacities, single or three phase models
• 10', 15, 20, lifts standard, custom lifts available
• Easy to install, inspect and maintain
• Totally enclosed steel plate construction with a durable powder coat finish
• Heavy duty ventilated motor with thermal overload protection
• Gear train features lifetime lubrication, no oil changes required
• 1 phase models feature thermal overload protection
• 3 phase models feature reverse phase protection
• All models come equipped with chain container
• Reliable DC electro-magnetic brake holds the load even if power is interrupted
• Quick connect wiring for power and push button controls
• Upper and lower limit switches prevent over travel
• Durable 24v push button control station with cable strain relief
• Proof tested with test certificate
• Complies with OSHA, ANSI/ASME B30.16 and HST-1 standards
• Solid state starting switch for added reliability
• All models equipped with slip clutch design overload protection
• Hardened 80 grade chain
• All models rated HS with 25% duty cycle rating for 1 phase and 30% duty cycle rating for 3 phase models
• 15% duty cycle rating = 9 minutes continuous operation in 1 hour, or 1 minute on, 7 minutes off
• 25% duty cycle rating = 12 minutes continuous operation in 1 hour, or 1 minute on, 4 minutes off
• 30% duty cycle rating = 18 minutes continuous in 1 hour, or 1 minute on, 4 minutes off

Specifications:

• Part Number | 311000
• Capacity | 3 ton
• Standard Lift | 10'
• Load Chain (dia.) | 8 mm
• Hoisting Speed | 6.6 fpm
• Headroom | 31½"
• Duty Cycle Rating | 25%
• Number of Falls | 3
• Motor Power | 1¾ HP
• Motor Voltage |  115 / 230 V
• Motor Phase | 1 Ph
• Web Description | 3SS-1C-10, 3 TON 1PH, 10' LIFT, 115V/230V PREWIRED 230V
• Model Number | 3SS-1C-10
• Height | 48"
• Width | 40"
• Length | 48"
• Net Weight | 198.5 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if residential or liftgate is required. Please note that for residential deliveries someone must be there to accept delivery. When ordering the checkout cart will incorrectly state that this ships by UPS.

Caution: Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
