Jet 321860A Belt Drive Bench Lathe

JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick change gearbox allows
for fast and easy gear changes for metric threading. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty

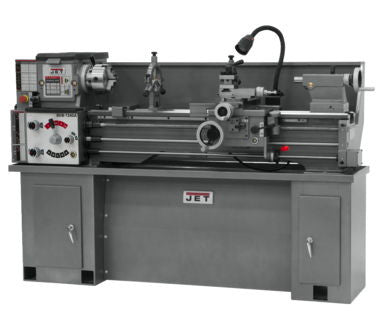

*** Shown with optional 321443AK stand. SOLD SEPARATELY ***

Features:

• One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
• Enclosed gearbox design provides smooth, quiet operation Fast, easy speed changes
• Helical cut head stock gears reduce noise
• Low voltage motor controls
• Change gears allow metric threading, Spindle is supported by precision tapered roller bearings
• V-way bed is induction hardened and ground, Gap bed section provided for large diameter work
• Independent lead screw and feed rod, T-slotted compound slide with four-way tool post
• Carriage mounted spindle control lever, Automatic feeding and threading are fully interlocked
• Feed selectors travel in grooved ways, Tail stock may be offset for turning tapers and includes and
• inch/metric graduated quill, Oil pan included, Tolerance test certificate included

Specifications:

• Size | 13" x 40"
• Swing Over Bed | 13"
• Swing Over Cross Slide | 7-25/32"
• Swing Through Gap | 18-3/4"
• Length of Gap | 8"
• Distance Between Centers | 40"
• Spindle Bore | 1-3/8"
• Spindle Mount | D1-4
• Spindle Taper with Sleeve | MT-5 (MT-3)
• Number of Spindle Speeds | 12
• Range of Spindle Speeds | 60 - 1,240 rpm
• Number of Longitudinal and Cross Feed Rates | 38
• Range of Longitudinal Feeds | .0018 - .0374 IPR
• Range of Cross Feeds | .0006 - .013 IPR
• Number of Inch Threads | 38
• Range of Inch Threads | 3-1/2 - 80 tpi
• Number of Metric Threads | 23
• Range of Metric Threads | .45 - 10
• Max Tool Size | 5/8" x 5/8"
• Compound Slide Travel | 2-11/16"
• Cross Slide Travel |6-5/16"
• Carriage Travel | 35"
• Tailstock Spindle Travel | 3-3/4"
• Taper in Tailstock Spindle | MT-3
• Follow Rest Capacity | 2-3/4"
• Steady Rest Capacity | 2-5/8"
• Width of Bed | 7-3/8"
• Motor | 2 HP, 230V, 1Ph
• Voltage | 230V Only
• Weight | 1,175 lbs
• Overall Dimensions | 71"l x 32"w x 45"h
