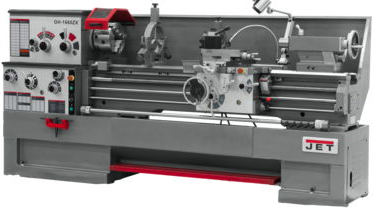

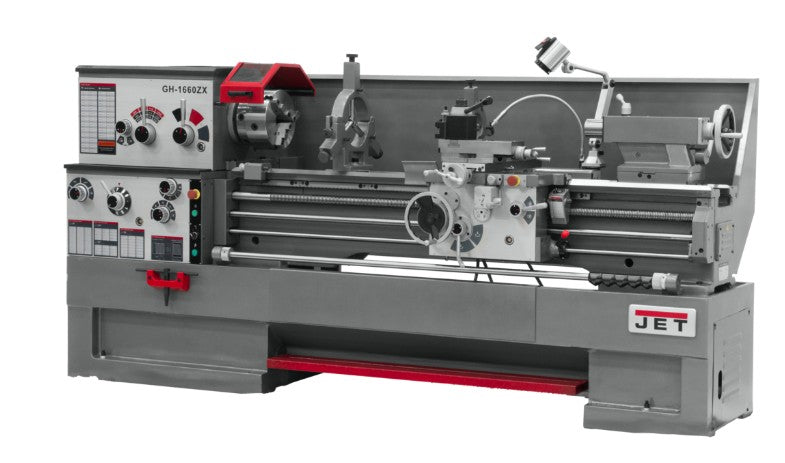

JET 321452 Large Spindle Bore Lathe With Newall DP700 DRO and Taper Attachment, JET GH-1860ZX

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears.

Features:

• 3-1/8” bore spindle is supported by two tapered and one ball bearings
• Chrome molybdenum headstock gears are hardened, ground and shaved
• Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
• One piece cast iron base absorbs vibration allowing heavier cuts
• Meehanite Castings

Standard Equipment:

• 10” 3-jaw scroll chuck with top reversing jaws
• 12” 4-jaw independent chuck
• 12” face plate (16" Models)
• 16" face plate (18' models)
• Four-way tool post
• Follow rest
• Large capacity steady rest
• Fully integrated coolant system
• Full length splash guard and coolant return
• Chuck Guard
• Articulating halogen work lamp
• Centrally located controls with jog button

Specifications:

• Size | 18" x 60"
• Swing Over Bed | 18"
• Swing Over Cross Slide | 11"
• Swing Through Gap | 27-1/2"
• Length of Gap | 12"
• Distance Between Centers | 60"
• Spindle Bore | 3-1/8"
• Spindle Mount | D1-8
• Spindle Taper with Sleeve | MT-7 (MT-5)
• Number of Spindle Speeds | 12
• Range of Spindle Speeds (RPM) | 25 - 1,800
• Number of Longitudinal and Cross Feed Rates | 122
• Range of Longitudinal Feeds (IPR) | .0015 - .0913
• Range of Cross Feeds (IPR) | .0006 - .0365
• Number of Inch Threads | 61
• Range of Inch Threads (TPI) | 1-5/8 - 72
• Number of Metric Threads | 24
• Range of Metric Threads | .05 - 20
• Number of Diametral Pitch Threads | 45
• Range of Diametral Pitch Threads | 3-1/4 - 96
• Number of Modular Pitch Threads | 20
• Range of Modular Pitch Threads | 0.25 - 10
• Max Tool Size | 1" x 1"
• Compound Slide Travel | 5-1/8"
• Cross Slide Travel | 9"
• Carriage Travel | 55-9/16"
• Tailstock Spindle Travel | 5"
• Taper in Tailstock Spindle MT-5
• Follow Rest Capacity | 1/2 - 3-1/2"
• Steady Rest Capacity | 3/8 - 7-3/4"
• Width of Bed | 13-1/8
• Motor | 7-1/2 HP, 230/460, 3 Ph
• Prewired | 230V
• Weight | 6,245 lbs
• Overall Dimensions | 115"l x 44"w x 66"h

Click Here for the ZX Series Owners Manual

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery
• When ordering the checkout cart will incorrectly state that this ships by UPS
• Call 1.800.837.3818 or Click Here to eMail us for Sale Pricing
