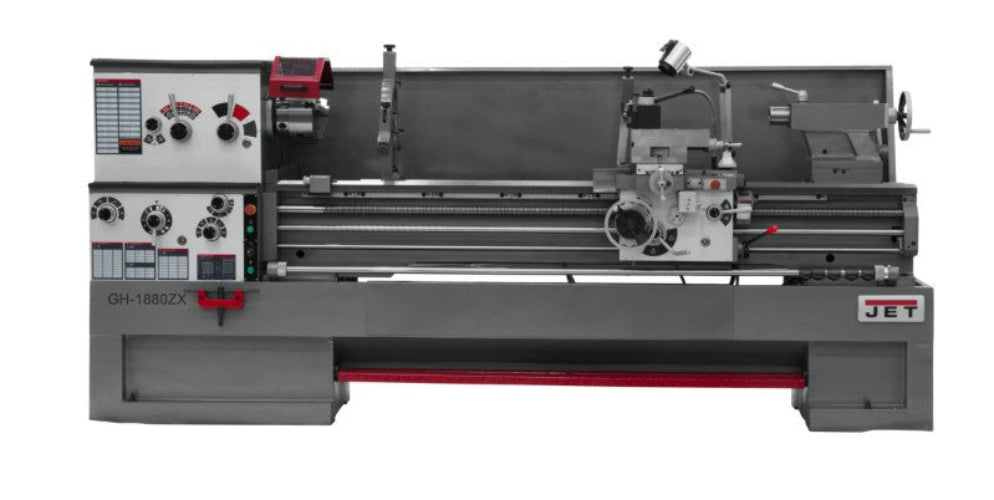

JET 321487 Large Spindle Bore Lathe With ACU-RITE 200S DRO, Jet GH-1880ZX

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears

Features:

• 3-1/8” bore spindle is supported by two tapered and one ball bearings
• Chrome molybdenum headstock gears are hardened, ground and shaved
• Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
• One piece cast iron base absorbs vibration allowing heavier cuts
• Meehanite Castings

Standard Equipment:

• 10” 3-jaw scroll chuck with top reversing jaws
• 12” 4-jaw independent chuck
• 12” face plate (16" Models)
• 16" face plate (18' models)
• Four-way tool post
• Follow rest
• Large capacity steady rest
• Fully integrated coolant system
• Full length splash guard and coolant return
• Chuck Guard
• Articulating halogen work lamp
• Centrally located controls with jog button

Specifications:

• Size | 18" x 80"
• Swing Over Bed | 18"
• Swing Over Cross Slide | 11"
• Swing Through Gap | 27-1/2"
• Length of Gap | 12"
• Distance Between Centers | 80"
• Spindle Bore | 3-1/8"
• Spindle Mount | D1-8
• Spindle Taper with Sleeve | MT-7 (MT-5)
• Number of Spindle Speeds | 12
• Range of Spindle Speeds (RPM) | 25 - 1,800
• Number of Longitudinal and Cross Feed Rates | 122
• Range of Longitudinal Feeds (IPR) | .0015 - .0913
• Range of Cross Feeds (IPR) | .0006 - .0365
• Number of Inch Threads | 61
• Range of Inch Threads (TPI) | 1-5/8 - 72
• Number of Metric Threads | 24
• Range of Metric Threads | .05 - 20
• Number of Diametral Pitch Threads | 45
• Range of Diametral Pitch Threads | 3-1/4 - 96
• Number of Modular Pitch Threads | 20
• Range of Modular Pitch Threads | 0.25 - 10
• Max Tool Size | 1" x 1"
• Compound Slide Travel | 5-1/8"
• Cross Slide Travel | 9"
• Carriage Travel | 74-5/16"
• Tailstock Spindle Travel | 5"
• Taper in Tailstock Spindle | MT-5
• Follow Rest Capacity | 1/2 - 3-1/2"
• Steady Rest Capacity | 3/8 - 7-3/4"
• Width of Bed | 13-1/8"
• Motor | 7-1/2 HP, 230/460, 3 Ph
• Prewired | 230V
• Weight | 6,590 lbs
• Overall Dimensions | 136"l x 44"w x 66"h
• Drive | Geared Head
• Style | Engine - Large Spindle Bore

Click Here for the ZX Series Owners Manual

PLEASE NOTE, IMPORTANT INFORMATION:

• This Jet item ships by truck. Please notify Mile-X Equipment if residential or liftgate is required.  Please note that for residential deliveries someone must be there to accept delivery.  When ordering the checkout cart will incorrectly state that this ships by UPS.
