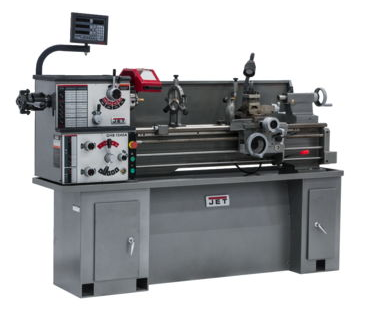

Jet GHB1340A 13" x 40" Geared Head Bench Lathe with Newall DP500 DRO and Collet Closer

JET geared head bench lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.

Features:

• One of the most popular JET lathes now comes with an enclosed gear box
• Enclosed gear box design provides smooth, quiet operation
• Fast, easy speed changes
• Hardened and ground gears are featured in the headstock and gearbox
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Headstock is constantly oiled during operation
• Gear box gives wide inch threading and feed capabilities with no gear changes
• V-way bed design is induction hardened and ground
• Gap bed section provided for larger diameter work
• Independent leadscrew and feed rod
• Spindle actuation control is apron mounted
• Compound and cross slide have backlash elimination
• Adjustable gibs are incorporated in the carriage and slideways
• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Oil pan included
• Tolerance test certificate included
• 6" 3-jaw direct mount chuck with top reversing jaws
• 8" 4-jaw chuck
• 12" face plate
• Steady and follow rest
• Four-way tool post
• Metric change gear
• Splash guard
• Centers and headstock center sleeve
• Threading dial
• Tool box and tools

*** SHOWN WITH OPTIONAL 321443AK STAND, SOLD SEPARATELY ***

Standard Equipment:

• 6" 3-jaw direct mount chuck with top reversing jaws
• 8" 4-jaw chuck
• 12" face plate
• Four-way tool post
• Steady and follow rest
• Metric change gear
• Splash guard
• Centers and headstock center sleeve
• Threading dial
• Tool box and tools

Specifications:
