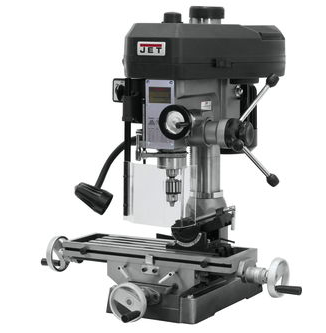

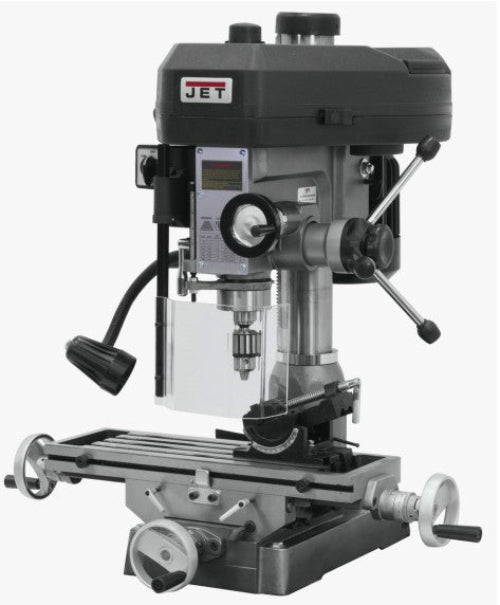

Jet 350017 Milling Machine with R-8 Taper, 1HP, 1Ph, 115/230V

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

Specifications:

• Part Number | 350017
• Number of Spindle speeds | 12
• Spindle Taper | R-8

• Quill Diameter | 2-7/16"
• Max Distance Spindle to Table | 15"
• Distance Spindle to Column | 7-1/4"
• Table Longitudinal Travel | 14"
• Table Cross Travel | 5-1/2"
• T-Slots Number and Size | 4 and 9/16"
• T-Slot Centers | 1-13/16"
• Drilling Capacity | 1"
• Face Mill Capacity | 2-1/2"
• End Mill Capacity | 1/2"
• Swing | 14-1/2"
• Column Diameter | 3-5/8"
• Quill Travel | 3-1/2"
• Range of Spindle Speeds (RPM) | 110–2,580
• Table Size | 7-1/2" x 23"
• Base Dimensions | 12-1/2" x 19-3/4"
• Motor | 1HP, 115/230V,1Ph Prewired 115V
• Model Number | JMD-15
• Overall Dimensions | 37"l x 38"w x 37"h
• Height | 35.5"
• Width | 37.5"
• Length | 36.5"
• Net Weight | 370 lbs
