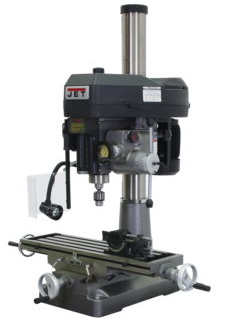

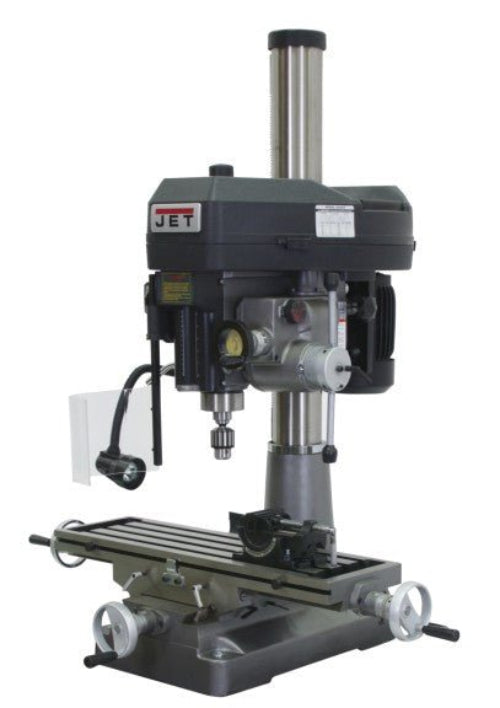

JET 350020 JMD-18PFN Mill/Drill With Power Downfeed 230V 1Ph

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

Features:

• For added safety, the JMD-18PFN follows strict guidelines and electrical requirements to be certified by CSA Group
• One-piece cast iron column for added support
• Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
• Base taper allows for easier clean up
• Drill Press angle vise
• UL Listed motor
• Extra large worktable
• New positive quick-stop knob and easy to read internal depth gauge (external on JMD-15)
• 360° head swivel
• Work lamp
• Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
• ½” drill chuck, chuck arbor
• Draw bar
• Drill Chuck Guard
• Adjustable Carbide facemill

Specifications:

• Powerfeed | Downfeed
• Drilling Capacity | 1-1/4"
• Face Mill Capacity | 3"
• End Mill Capacity | 3/4"
• Swing | 15-7/8"
• Max Distance Spindle to Table | 26"
• Spindle Taper (In. x TPI) | R-8
• Spindle Travel | 5"
• Spindle Travel Auto | 4-1/4"
• Quill Down Feed Rates (IPR) | 0.0047, 0.007, 0.001
• Quill Diameter | 3"
• Column Diameter | 4-1/2"
• Number of Spindle Speeds | 12
• Range of Spindle Speeds | 150 - 3,000 rpm
• Table Size | 9-1/2"l x 31-3/4"w
• Table Longitudinal Travel | 20-1/2"
• Work Table Weight Capacity | 400 lbs
• T-Slots Number and Size | 4 and 5/8"
• T-Slot Centers | 1-13/16"
• Base Dimensions | 15-3/4" x 23-3/4"
• Motor | 2 HP, 230V Only, 1 Ph
• Overall Dimensions | 47"l x 40"w x 51"h
• Weight | 700 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery
• When ordering the checkout cart will incorrectly state that this ships by UPS
• For other options or models, call 800-837-3818
