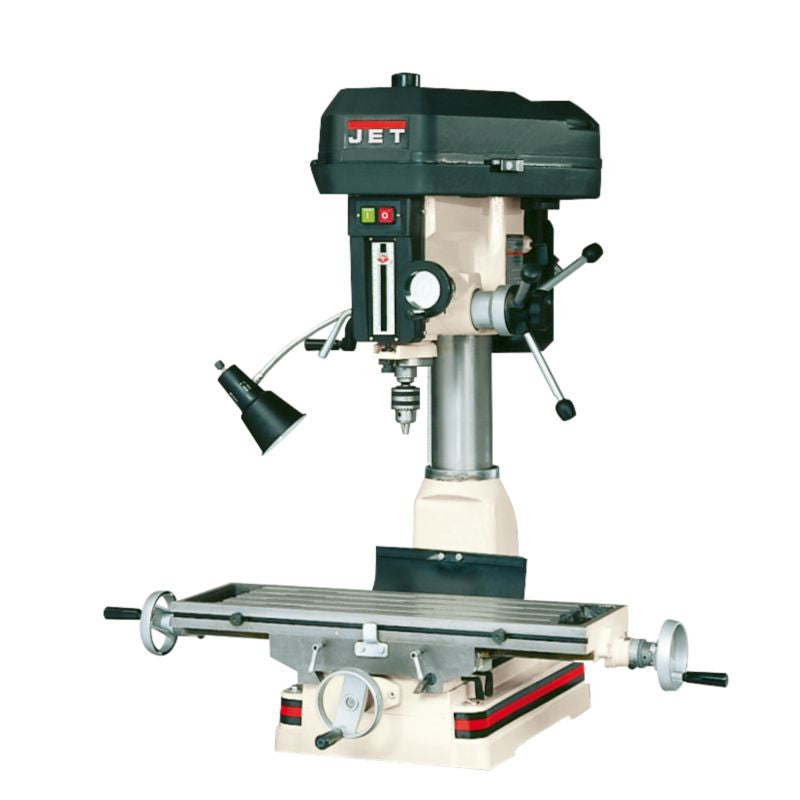

• MILLING/DRILLING MACHINES
• One-piece cast iron column for added support
• Belt cover " quick slide latch allows faster belt adjustment to change spindle speeds
• Base " taper allows for easier clean-up
• Larger hand wheel knobs
• UL Listed motor
• Extra large worktable
• Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
• New positive quick-stop knob and easy-to-read internal depth gauge (external on JMD-15)
• 360° head swivel
• Worklamp
• Adjustable carbide facemill
• Drill press angle vise
• 1/2 drill chuck, chuck arbor
• Draw bar

Specifications:

• Part Number | 350132
• Number of Spindle speeds | 12
• Spindle Taper | R-8
• Quill Diameter | 2-7/16"
• Max Distance Spindle to Table | 15"
• Distance Spindle to Column | 7-1/4"
• Table Longitudinal Travel | 14"
• Table Cross Travel | 5-1/2"
• T-Slots Number and Size | 4 and 9/16"
• T-Slot Centers | 1-13/16"
• Drilling Capacity | 1"
• Face Mill Capacity | 2-1/2"
• End Mill Capacity | 1/2"
• Swing | 14-1/2"
• Column Diameter | 3-5/8"
• Quill Travel | 3-1/2"
• Range of Spindle Speeds (RPM) | 110–2,580
• Table Size | 7-1/2" x 23"
• Base Dimensions | 12-1/2" x 19-3/4"
• Motor | 1HP, 115/230V,1Ph Prewired 115V
• Model Number | JMD-15
• Overall Dimensions | 37"l x 38"w x 37"h
• Height | 35.5"
• Width | 37.5"
• Length | 36.5"
• Net Weight | 440 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• When ordering the checkout cart will incorrectly state that this ships by UPS
• Call 800-837-3818 For Sale Price

Jet has the most extensive selection of metal lathes available and offers a full range of lathes and accessories. Jet offers packages that include taper attachments, collet closers, a name brand digital readouts (Acu-Rite, Anilam and Newall) to meet the needs of any operation. Bench lathes, geared head lathes and large bore spindle lathes. Arco Rotary Phase Converters to convert single phase over to 3 phase available up to 50 total hp. Two year factory warranty. Great for home use or business applications. Jet has more than 800 authorized service centers throughout the US and carrys millions of dollars in spare parts to get you back going if the need arises. Since we buy directly from Jet, you can buy all your Jet products at Mile-X with confidence that you can be supported in the future.
