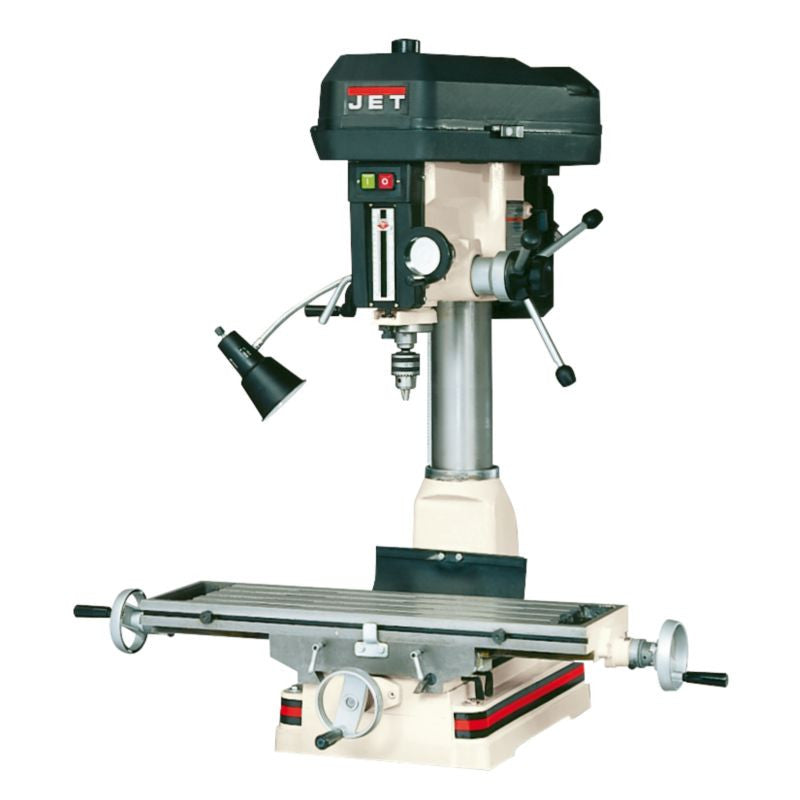

Jet 350134 JMD-18 Jet Milling/Drilling Machine With Newall DP500 DRO and X-Axis Powerfeed

The JMD-18 Mill Drill is one of a kind. The one piece cast iron column adds support to tackle various drilling applications. Each mill drill comes equipped with a draw bar, adjustable carbide facemill, worklamp, 360 degree swivel head, and extra large worktable. Did we mention the JMD-18 is UL listed?

Features:

• One-piece cast iron column for added support
• Belt cover "quick slide latch allows faster belt adjustment to change spindle speeds
• Base taper allows for easier clean-up
• Larger hand wheel knobs
• UL Listed motor
• Extra large worktable
• Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
• New positive quick-stop knob and easy-to-read internal depth gauge (external on JMD-15)
• 360 degree head swivel
• Worklamp included
• Adjustable carbide facemill
• Drill press angle vise
• 1/2 drill chuck, chuck arbor
• Draw bar included

Specifications:

• Part Number | 350134
• Number of Spindle speeds | 12
• Spindle Taper | R-8
• Quill Diameter | 3"
• Max Distance Spindle to Table | 18"
• Table Longitudinal Travel | 20-1/2"
• Table Cross Travel | 6-1/2"
• T-Slots Number and Size | 4 and 5/8"
• T-Slot Centers | 1-13/16"
• Work Table Weight Capacity | 400 lbs
• Drilling Capacity | 1-1/4"
• Face Mill Capacity | 3"
• End Mill Capacity | 3/4"
• Swing | 15-7/8"
• Column Diameter | 4-1/2"
• Quill Travel | 5"
• Range of Spindle Speeds | 150–3,000 rpm
• Table Size | 9-1/2" x 32-1/4"
• Base Dimensions | 15-3/4" x 23-3/4"
• Motor | 2HP, 115/230V Prewired 115V, 1Ph
• Model Number | JMD-18
• Overall Dimensions | 47" x 40" x 51"
• Height | 43.5"
• Width | 39.75"
• Length | 42.5"
• Net Weight | 660 lbs
