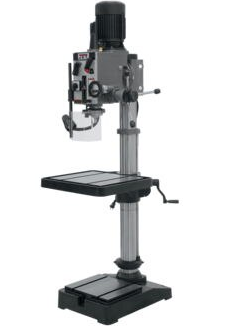

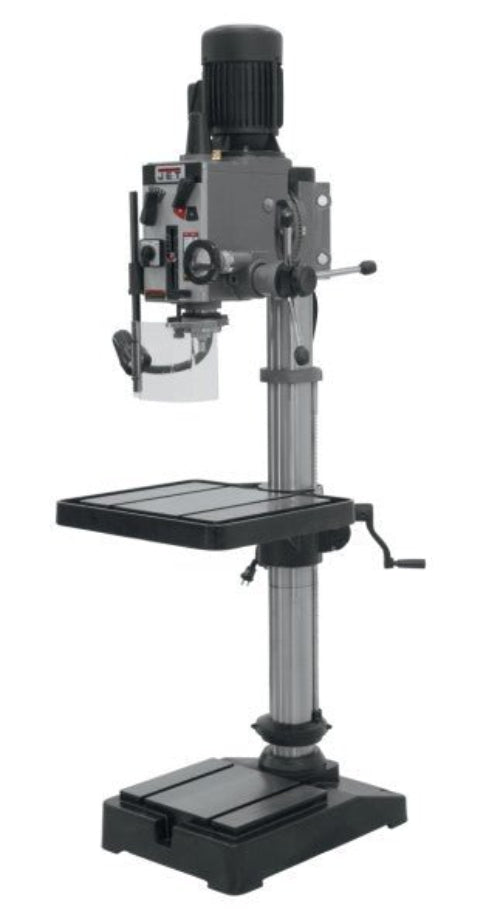

JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results.

Features:

• Heavy duty design allows a variety of precision drilling applications
• Easy to read internal depth gauge (GHD-20)
• Three power down feeds (GHD-20PF)
• Calibrated fine down feed built-in
• Built-in spindle lock
• Head tilts left or right
• Easy accessible table raiser
• Large production table and T-slotted base

Jet Standard Equipment:

• T-slotted worktable
• Drill chuck arbor
• Draw bar

Specifications:

• Style | Geared Head
• Drills to Center of Circle | 20"
• Drilling Capacity Cast Iron | 1-1/2"
• Drilling Capacity Mild Steel | 1-1/4"
• Column Diameter | 4-1/2"
• Distance Column to Spindle | 10"
• Range of Spindle Speeds (RPM) | 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
• Spindle Taper (In. x TPI) | MT-3
• Spindle Travel | 5"
• Spindle Distance to Base | 44-15/16"
• Spindle Distance to Table (Max) | 30-1/2"
• Quill Diameter | 3"
• Quill Feed | Manual
• Table Travel | 25-1/2"
• T-Slots Number and Size | 2 & 5/8"
• T-Slot Centers | 9"
• Work Table Weight Capacity | 275 lbs
• Table Size | 21-3/4"l x 19-1/2"w
• Base Work Table | 15-1/4" x 13"
• Base Slots Number & Size | 2" & 5/8"
• Base Dimensions | 26" x 18"
• Motor | 2 HP (2 Speed) , 230V, 3Ph
• Prewired | 230v
• Overall Dimensions | 32"l x 24"w x 71"h
• Weight | 660 lbs
