Jet  |  SKU: JET354024

JET 354024 GHD-20PF 20" Geared Head Drill Press w/ Power Down Feed

$6,299.00
Contact Us

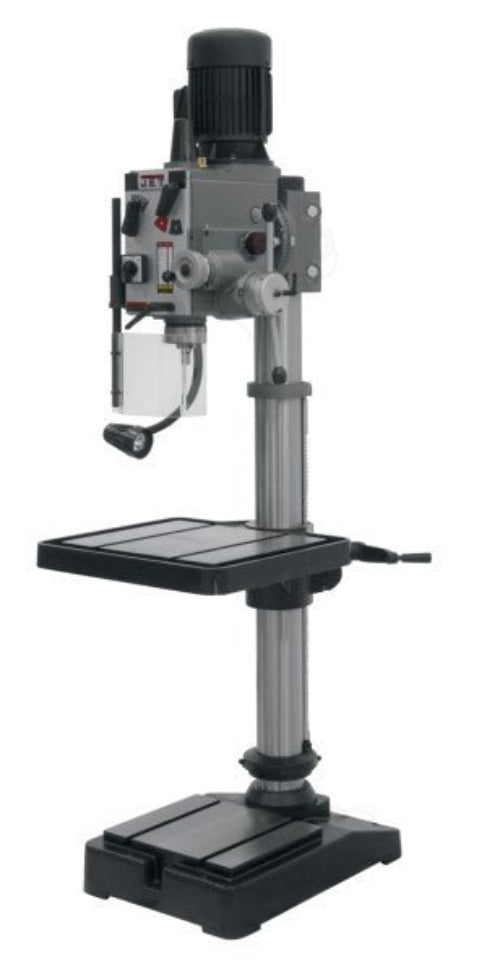

Jet 354024 20" Geared Head Power Down Feed Drill Press

Achieve precision drilling from a design that includes an easy-to-read internal depth gauge, three power down feeds, built-in spindle lock and calibrated fine down feed. JET backs this reliable drill press with a Two Year Warranty.

Features:

  • Heavy duty design allows a variety of precision drilling applications
  • Easy to read internal depth gauge (GHD-20)
  • Three power down feeds (GHD-20PF)
  • Calibrated fine down feed built-in
  • Built-in spindle lock
  • Head tilts left or right
  • Easy accessible table raiser
  • Large production table and T-slotted base

Jet Drill Press Standard Equipment:

  • T-slotted worktable
  • Drill chuck arbor
  • Draw bar

Specifications:

  • Style | Geared Head
  • Drills to Center of Circle | 20"
  • Drilling Capacity Cast Iron | 1-1/2"
  • Drilling Capacity Mild Steel | 1-1/4"
  • Column Diameter | 4-1/2"
  • Distance Column to Spindle | 10"
  • Range of Spindle Speeds (RPM) | 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
  • Spindle Taper (In. x TPI) | MT-3
  • Spindle Travel | 4-1/2"
  • Spindle Distance to Base | 44-15/16"
  • Spindle Distance to Table (Max.) | 30-1/2"
  • Quill Diameter | 3"
  • Quill Feed | Manual
  • Table Travel | 25-1/2"
  • T-Slots Number and Size | 2 & 5/8"
  • T-Slot Centers | 9"
  • Work Table Weight Capacity | 275 lbs
  • Table Size | 21-3/4" x 19-1/2"
  • Base Work Table | 15-1/4" x 13"
  • Base Slots Number & Size | 2 & 5/8"
  • Base Dimensions | 26" x 18"
  • Motor | 2 HP (2 Speed) , 230V, 3Ph
  • Prewired | 230v
  • Overall Dimensions | 32"l x 24"w x 71"h
  • Weight | 660 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

  • This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery
  • When ordering the checkout cart will incorrectly state that this ships by UPS
  • Call 1.800.837.3818 or Click Here to eMail us for Sale Pricing
