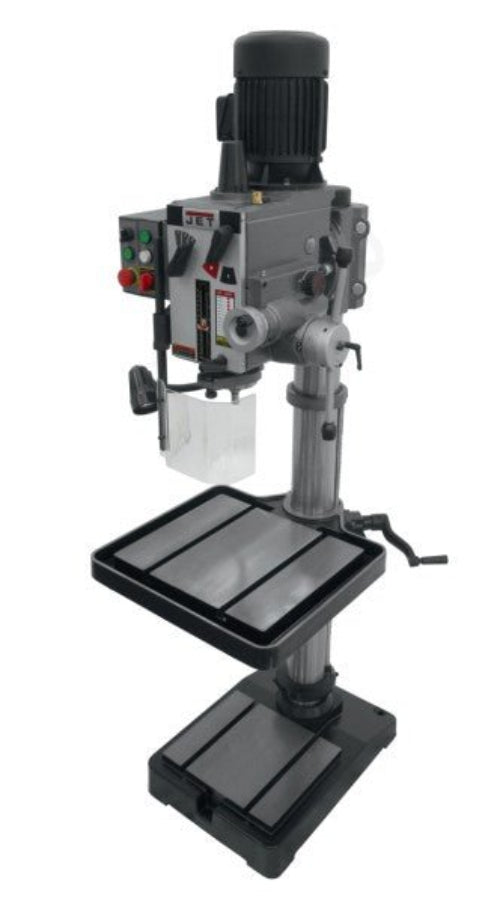

Jet 354026 20" Geared Head Drilling and Tapping Press w/ Power Feed

Features:

• Heavy-duty design allows a variety of precision drilling and tapping applications
• Integrated tapping and reversing controls
• Large production table and T-slotted base
• Easy-to-read internal depth gauge
• Power downfeed speed selector
• Calibrated fine downfeed built in
• TEFC motor
• Built-in spindle lock
• Head tilts left or right
• Easily accessible table raiser
• Drill chuck arbor
• Draw bar

Specifications:

• Style | Geared Head
• Drills to Center of Circle | 20"
• Drilling Capacity Cast Iron | 1-1/2"
• Drilling Capacity Mild Steel | 1-1/4"
• Tapping Capacity Cast Iron | 15/16"
• Tapping Capacity Mild Steel | 15/16"
• Column Diameter | 4-1/2"
• Distance Column to Spindle | 10"
• Range of Spindle Speeds (RPM) | 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
• Spindle Taper (In. x TPI) | MT-3
• Spindle Travel | 4-1/2"
• Spindle Distance to Base | 44-5/16"
• Spindle Distance to Table (Max.) | 30-1/2"
• Quill Diameter | 3"
• Quill Feed | Manual
• Table Travel | 25-1/2"
• T-Slots Number and Size | 2 & 5/8"
• T-Slot Centers | 9"
• Work Table Weight Capacity | 275 lbs
• Table Size | 21-3/4"l x 19-1/2"w
• Base Work Table | 15-1/4" x 13"
• Base Slots Number & Size | 2 & 5/8"
• Base Dimensions | 26" x 18"
• Motor | 2 HP (2 Speed) , 230V, 3Ph
• Prewired | 230v
• Overall Dimensions | 32"l x 24"w x 71"h
• Weight | 708 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This Jet Band Saw ships by truck. Please notify Mile-X Equipment if residential or liftgate is required.  Please note that for residential deliveries someone must be there to accept delivery.  When ordering the checkout cart will incorrectly state that this ships by UPS.
