Jet JDP-17MF Drill Press

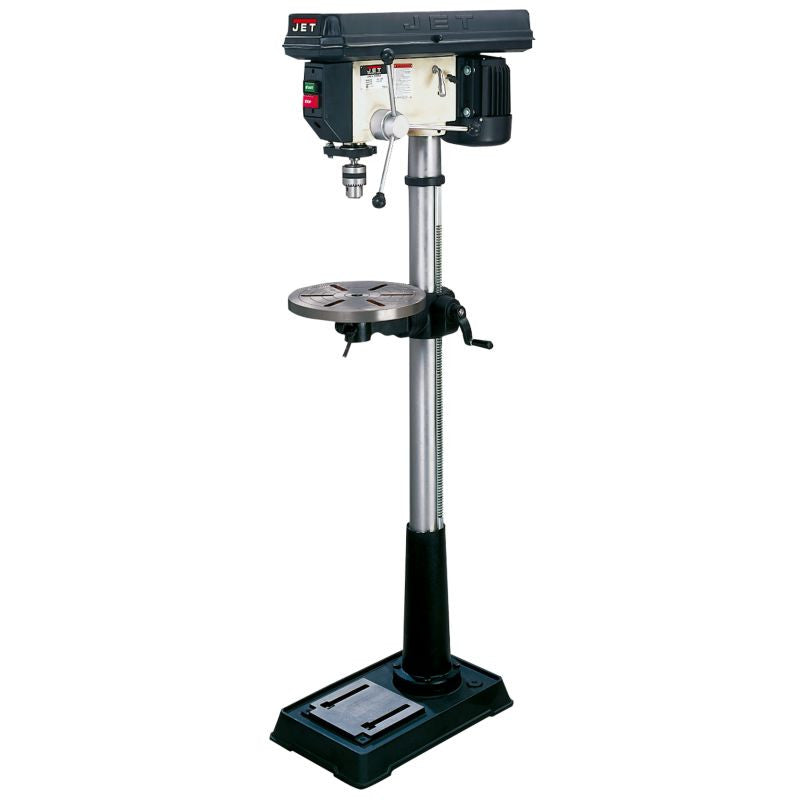

The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. It has 16 speeds which gives you the opportunity to choose the best speed for your job.  The Drill Press comes equipped with a quick release crank operated worktable, worklight, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth.

Features:

• 16 speeds lets you choose the best speed for the job
• Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
• Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
• "X" pattern mounting grooves in table allow mounting a fence when table is in reverse position
• Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
• Spindle has high-quality ball bearing construction for long life
• Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
• Built-in worklight (bulb not included) provides additional visibility of your work

Specifications:

• Part Number | 354169
• Swing | 16½"
• Spindle Travel | 4-3/8"
• Spindle Distance to Table (max) | 29-1/8"
• Spindle Distance to Base | 49"
• Spindle Speed | 200 - 3630 RPM
• Spindle Taper | MT-2
• Drilling Capacity | 5/8"
• Chuck Size | 5/8"
• Column Diameter | 3-1/8"
• Table Size | 13-3/4"
• Base Size | 11-1/8 x 19-5/8"
• Motor Power | ¾ HP
• Motor Voltage | 115/230 V
• Prewired Voltage | 115 V
• Motor Current | 9/4.5 A
• Motor Phase | 1 Ph
• Spindle Speeds | 16
• Family Description | 16-1/2" FLOOR MOUNT DRILL PRESSES
• Model Number | JDP-17MF
• Height | 12.8"
• Width | 23.5"
• Length | 54.5"
• Net Weight | 209 lbs
