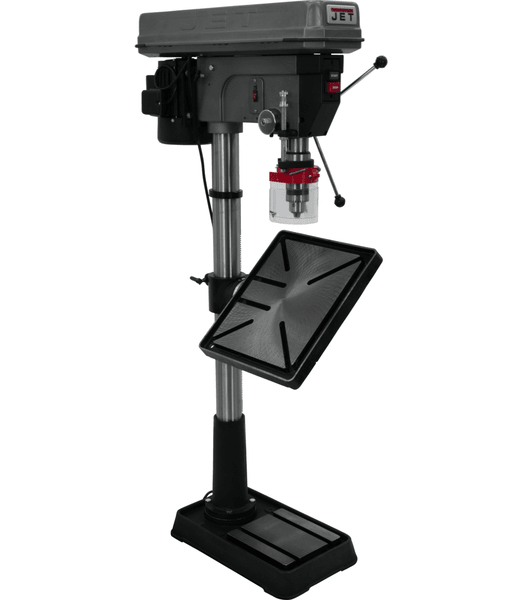

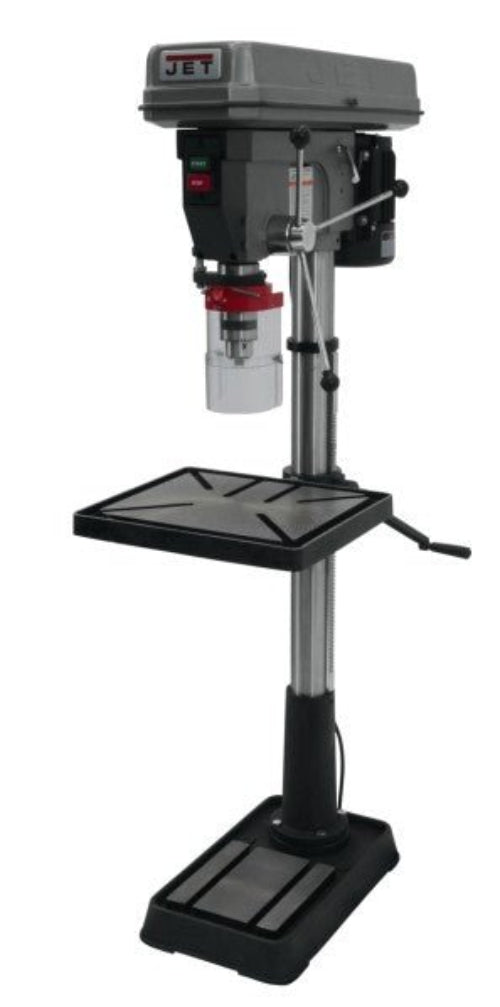

Jet JDP-20MF Drill Press

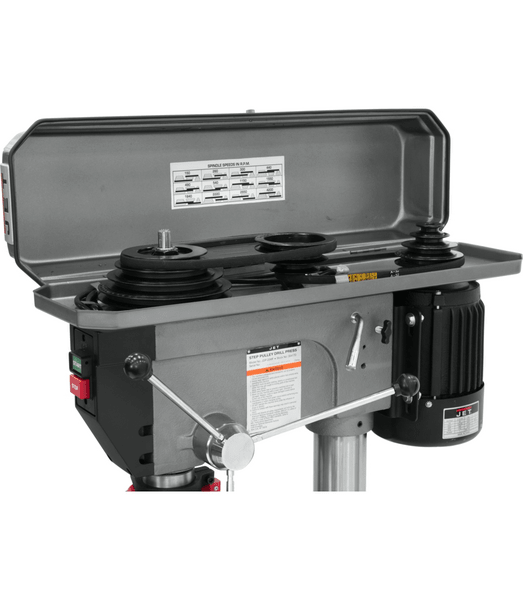

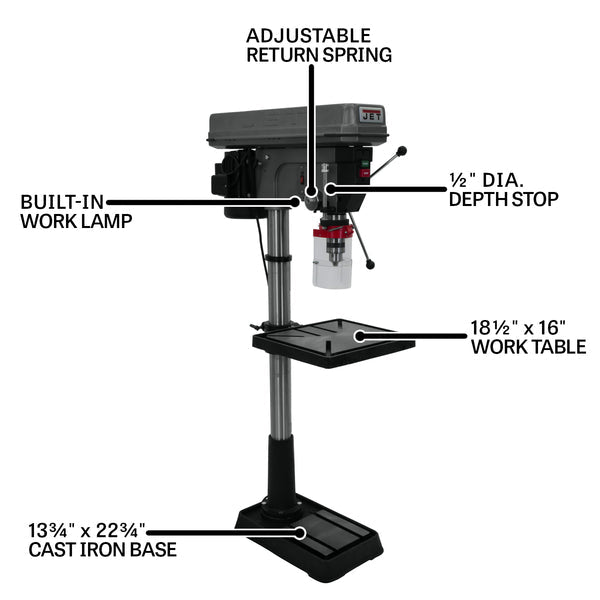

The JET JDP-20MF Floor Drill Press is powered by a 1-1/2 HP motor and is equipped with a built in work lamp, adjustable tension spindle return spring, and hinged metal belt and pully cover. With 12 speeds, the JDP-20MF can be used for any project you see fit.

Features:

Specifications:

• Style | Variable
• Drills to Center of Circle | 20"
• Drilling Capacity Cast Iron | 1"
• Drilling Capacity Mild Steel | 3/4"
• Distance Column to Spindle | 10"
• Number of Spindle Speeds | 12
• Range of Spindle Speeds (RPM) | 150 - 4,200
• Column Diameter | 3-3/8"
• Spindle Taper (In. x TPI) | MT-3
• Spindle Travel | 4-5/8"
• Spindle Distance to Base | 46-3/4"
• Spindle Distance to Table (Max.) | 29-1/8"
• Table Travel | 21-1/2"
• T-Slots Number and Size | 6 and 1/2"
• T-Slot Centers | 3-1/2"
• Table Size | 18-1/2"l x 16"w
• Work Table Weight Capacity | 80 lbs
• Base Dimensions | 13-3/4" x 22-3/4"
• Base Work Table | 13" x 8-1/2"
• Base Slots Number & Size | 2 and 5/8"
• Motor (HP) | 1-1/2 HP, 115/230V, 1Ph
• Prewired (V.) | 115
• Overall Dimensions | 33-1/2"l x 18-1/2"w x 67"h
• Weight | 282 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.

Mile-X has a large selection of Jet and Wilton Drill Press online and both are a great choice for home or business users. Both of these manufacturers are part of the WMH Tool Group. We can supply a large selection of Jet/Wilton products including Jet/Arco Rotary Phase Converters, drill presses, bench vises, bandsaws, arbor presses, chain hoist and milling machines. Jet drill presses carry a two year factory warranty and Jet has more than 800 authorized service centers throughout the US and carrys millions of dollars in spare parts to get you back going if the need arises. Since we buy directly from Jet, (and we are one of the larger suppliers in the midwest!) you can buy all your Jet products at Mile-X with confidence that you can be supported in the future. If you are local to our Coldwater, Ohio warehouse, give us a call to pick up and save on shipping cost. For the really heavy duty needs, give us a call on pricing for the 26" Wilton Arboga gear head drill press, Wilton radial drill press or the direct drive column drill. Most of these heavy duty pieces have free shipping and we are ready to quote.

If you need more drill press options, check out our selection Drill Press.
