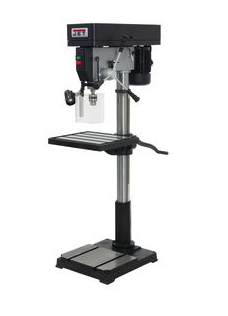

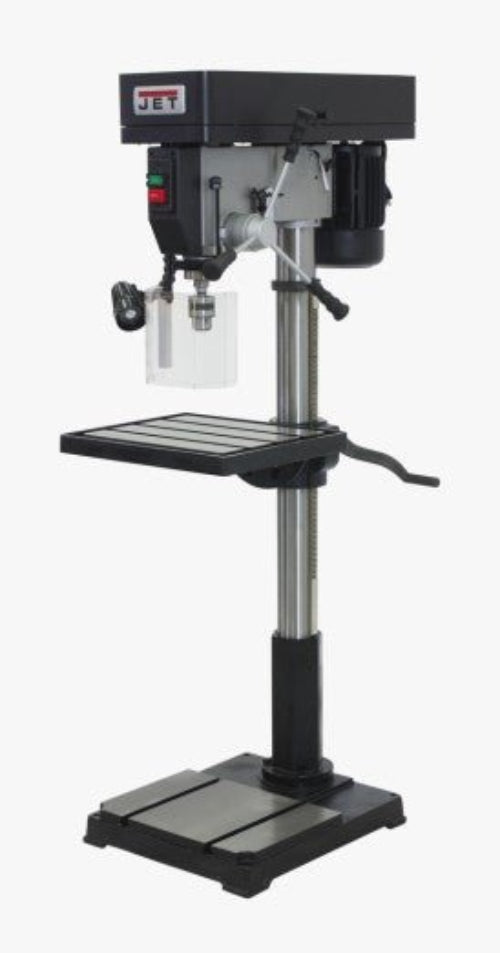

JET IDP-22, 22" Industrial Floor Model Drill Press 354301

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.

Features:

• For added Safety, the IDP-22, 22" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
• Spindle is supported by high quality ball bearings
• Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
• Large Hand Grips designed with the users comfort in mind
• Rotating, 45° tilting, crank-operated worktable with quick release clamp
• A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
• Adjustable tension spindle return spring
• Drill chuck and key attach to the side of the drill press always within reach of the operator
• On/off switch located on front of the drill press head
• Heavy Duty construction
• Cast Iron table and base
• Table ground for accuracy
• STANDARD EQUIPMENT
• LED Machine Lamp
• Ground Table
• Spindle Safety Guard
• Drill Chuck and Key

Specification:

• Style | Belt Drive
• Drills to Center of Circle | 22"
• Drilling Capacity Cast Iron | 1-1/4"
• Drilling Capacity Mild Steel | 1"
• Tapping Capacity Mild Steel | 1"
• Distance Column to Spindle | 10-7/8"
• Number of Spindle Speeds | 12
• Range of Spindle Speeds (RPM) | 175 - 3,050
• Column Diameter | 3-5/8"
• Spindle Taper (In. x TPI) | MT-3
• Spindle Travel | 4-13/16"
• Spindle Distance to Base | 48-1/2"
• Spindle Distance to Table (Max.) | 28"
• Table Size | 18-5/8"l x 16-1/8"w
• T-Slots Number and Size | 2 and 5/8"
• T-Slot Centers | 3/4"
• Work Table Weight Capacity | 176 lbs
• Base Dimensions | 22-5/8" x 19-7/16"
• Base Work Table | 21-1/2" x 18-5/16"
• Base Slots Number & Size | 2 and 5/8"
• Motor | 1-1/2HP, 115/230V, 1Ph
• Weight | 364 lbs
