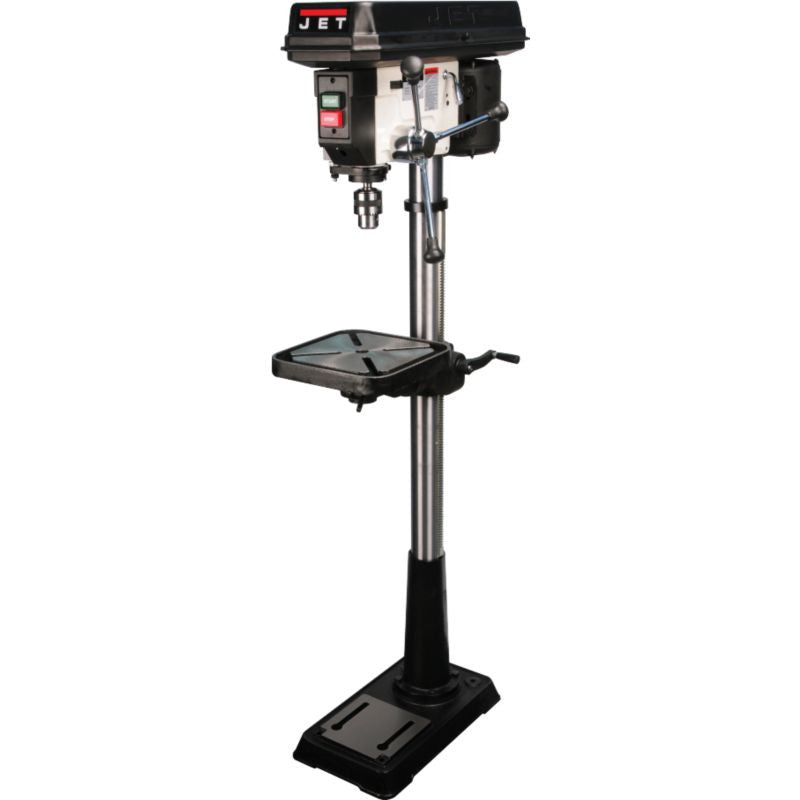

Jet J-2500 Floor Model Drill Press

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

• Cast iron head
• Large quill allows greater accuracy
• Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings mounted in an enclosed quill for extended life.
• Table tilts 45°
• Large ground steel column diameter for maximum head and table support
• Hinged metal belt and pulley cover
• Accurate depth stop displays inch/mm and has quick set bolt for fast, accurate adjustments
• 5/8 drill chuck and arbor

Specifications:

• Part Number | 354400
• Motor | 1/2HP, 115V, 1 Ph,
• Number of Spindle speeds | 16
• Range of Spindle Speeds (RPM) | 200,290,350,430,500,580,640,720,800,870,1440,1630,1820,2380,2540,3630
• Spindle Taper | 2 MT
• Quill Diameter | 1-7/8"
• T-Slots Number and Size | N/A
• Column Diameter | 2-7/8"
• Base Dimensions | 11"l x 19"w-1/2"h
• Drilling Capacity Cast Iron | 5/8"
• Drilling Capacity Mild Steel | 1/2"
• Quill Travel | 3-1/8"
• Distance Base to Spindle | 48-3/4"
• Table Size | 10" x 10"
• Chuck Size | 5/8"
• Drills to Center of Circle | 15"
• Spindle Distance to Base | 48-3/4"
• Swing | 15"
• Base Work Table | 11" x 19-1/2"
• Spindle Travel | 3-1/8"
• Table Dimensions | 10" x 10"
• Web Description | J-2500 15" Floor Model Drill Press, 1/2HP, 115V
• Model Number | J-2500
• Overall Dimensions | 26" x 13-3/8" x 63-1/2"
• Height | 63.5"
• Width | 13.375"
• Length | 26"
• Net Weight | 167 lbs
