Jet | SKU:
JET414226

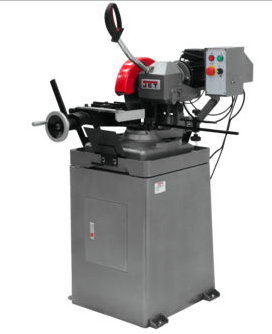

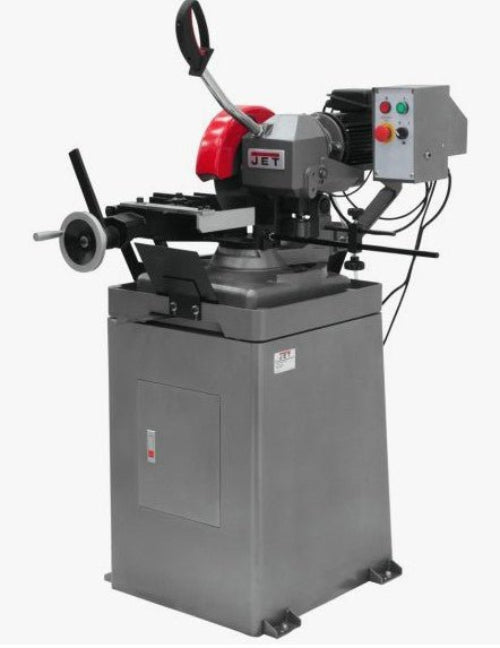

JET 414226 CS-275 Manual Coldsaw (275 mm)
$2,989.00
Unit price
/
Unavailable
JET 414226 CS-275 Manual Coldsaw (275 mm) is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Jet 414226 CS-275 Manual Coldsaw
The JET CS-275 Manual Coldsaw uses a 275mm blade to cut through solid steel. With 2 cutting speeds, the CS-275 is ideal for cutting pipes and bars.
Features:
- Heavy duty cast iron frame base standard
- Cast dual pivot saw head
- Two cutting speeds
- Hardened and ground worm and wheel gear box
- 1.5 gallon coolant tank capacity
- Integral flood-style coolant system
- 30 inch material length stop
- Safety guards
- Capable of slotting
Jet 414226 Specifications:
- Part Number | 414226
- Cutting Capacity Solid | 1-3/8"
- Cutting Capacity Tubing | 3-1/8"
- Round at 90 Degrees | 3-1/8" (tube), 1-3/8" (solid)
- Round at 45 Degrees | 3-1/8" (tube), 2-3/8" (solid)
- Rectangle at 90 Degrees | 3-1/32" x 2" (tube), 3-1/32" x 2" (solid)
- Square at 90 Degrees | 2-3/8" x 2-3/8" (tube), 2-3/8" x 2-3/8" (solid)
- Blade Size | 10.82" x 1.25" x 0.07"
- Blade Speeds (RPM) | 54 , 108
- Maximum Vise Opening | 4"
- Motor | 1.5HP, 220V, 3Ph
- Rectangle at 45 Degrees | 2-1/16" x 2" (tube), 2-1/16" x 2" (solid)
- Square at 45 Degrees | 2-1/16" x 2-1/16" (tube), 2-1/16" x 2-1/16" (solid)
- Web Description | CS-275 Manual Coldsaw 275mm
- Family Description | Manual Coldsaw
- Model Number | CS-275
- Overall Dimensions | 27"l x 25"w x 61"h
- Net Weight | 350 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery
- When ordering the checkout cart will incorrectly state that this ships by UPS
- Call 1.800.837.3818 or Click Here to eMail us for Sale Pricing
