Jet | SKU:
JET414227

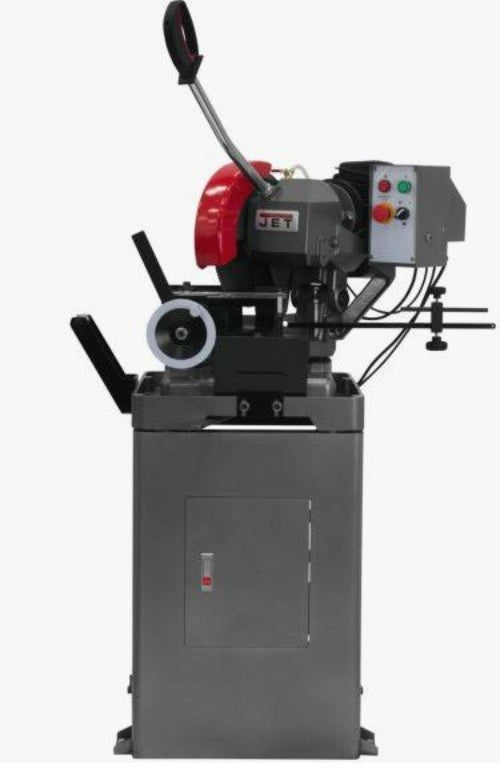

JET 414227 CS-315 Manual Coldsaw (315mm)
$3,199.00
Unit price
/
Unavailable
JET 414227 CS-315 Manual Coldsaw (315mm) is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

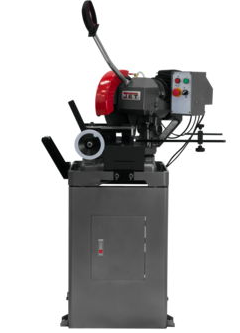

Jet 414227 CS-315 Manual Coldsaw
Features:
- Miter up to 135 degrees
- Heavy duty cast iron frame base with a cast saw head.
- Long actuating handle giving the operator a lot of leverage
- Clamping system operation is conducted with an cam-handle for quick release.
- Integral coolant system.
Specifications:
- Part Number | 414227
- Cutting Capacity Solid | 2"
- Cutting Capacity Tubing | 3-3/8"
- Round at 90 Degrees | 3-3/8" (tube), 2" (solid)
- Round at 45 Degrees | 3-3/8" (tube), 2" (solid)
- Rectangle at 90 Degrees | 3-1/16" x 3-1/16" (tube), 4" x 3-1/16" (solid)
- Square at 90 Degrees | 3.25" x 3.25" (tube), 3.2" x 3.2" (solid)
- Blade Size | 315mm x 32mm x 2mm
- Blade Speeds (RPM) | 52 , 104
- Maximum Vise Opening | 4.7"
- Motor | 2HP, 220V, 3Ph
- Rectangle at 45 Degrees | 2-1/4" x 2-1/4" (tube), 2-1/4" x 3-1/16" (solid)
- Square at 45 Degrees | 3-1/16" x 3-1/16" (tube), 2-1/4" x 2-1/4" (solid)
- Family Description | MANUAL COLDSAW
- Model Number | CS-315
- Overall Dimensions | 40"l x 40"w x 70"h
- Height | 72"
- Width | 40"
- Length | 40"
- Net Weight | 390 lbs
