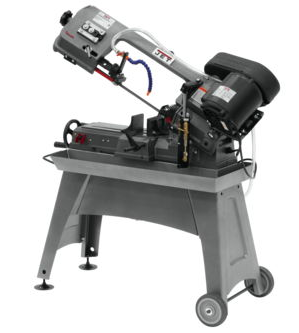

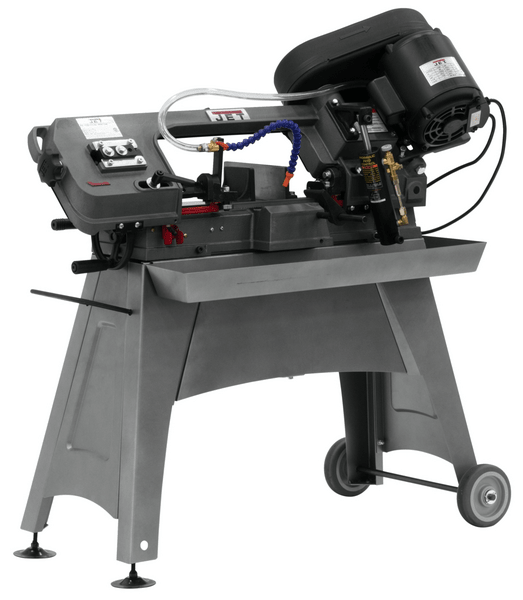

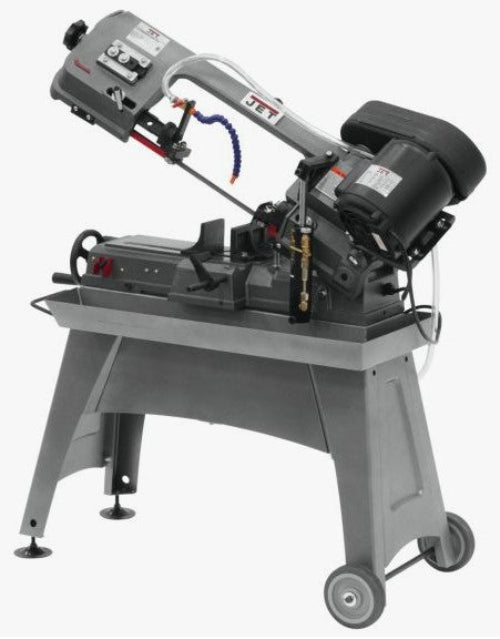

JET 414453 J-3230 5 X 8 Horizontal Bandsaw

Adjustable guides and hydraulic feed, steel worm gear and bronze drive gear, and auto shutoff at end of the cut are some of the features that makes this JET Hydraulic Band Saw a must for any professional machine shop. The built-in handle and wheels makes relocation within your workspace quick and easy.

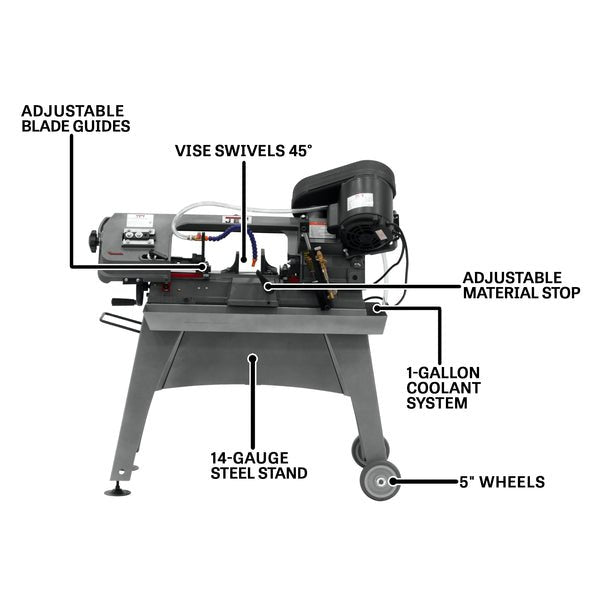

Features:

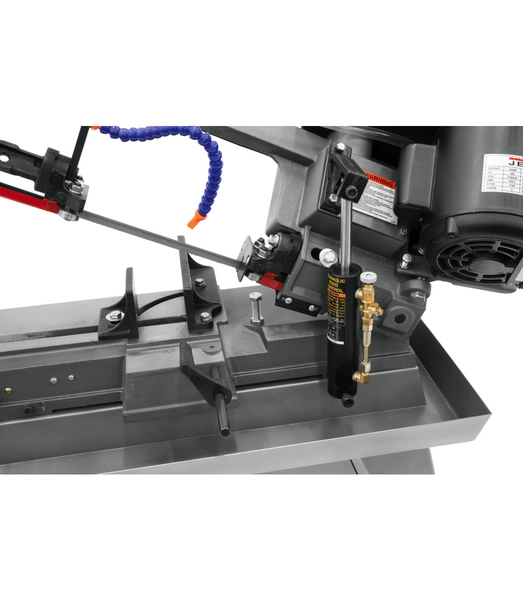

• Adjustable hydraulic feed system
• Adjustable ball bearing guides
• Heat treated steel worm gear and bronze driver gear
• Automatic shut off at end of cut
• Handles and wheels for convenient moving to various work stations
• Eccentric shaft and ball bearing guides
• Standard Equipment:
• 1 gallon capacity coolant system with hose, flexible nozzle, shut off valve, tank and baffle
• 1/2" Carbon steel blade
• Adjustable material stop

Specifications:

• Part Number | 414453
• Motor | 1/2 HP, 115V 1 Ph, 1725 RPM
• Round at 90 Degrees | 5"
• Round at 45 Degrees | 4-1/2"
• Rectangle at 90 Degrees | 7-1/2" x 5"
• Square at 90 Degrees | 5"
• Blade Size | 1/2" x .025" x 68-1/2"
• Blade Speeds (SFPM) | 85, 125, 200
• Bed Height | 23-1/2"
• Blade Length | 68-1/2"
• Rectangle at 45 | 4-1/2" x 5"
• Base/ 3 Legs Area Required | 37" x 16" x 37"
• Web Description | J-3230 5 X 8 HORIZONTAL BANDSAW WET 1/2 HP, 115V, 1Ph
• Model Number | J-3230
• Overall Dimensions | 37" x 16" x 37"
• Net Weight | 160 lbs
