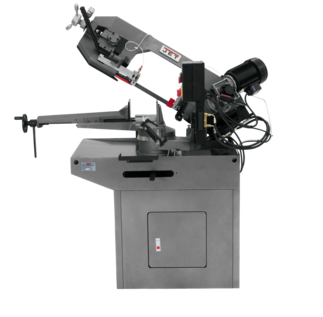

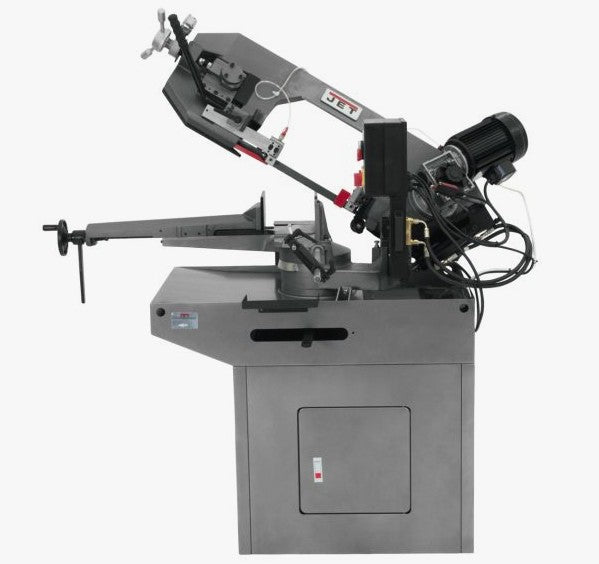

Jet 414467 J-9225, 8-3/4" Zip Miter Horizontal Bandsaw

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

Features:

• Mitering head swivels to cut any angle 0° - 60° while the work piece remains secured
• Adjustable blade guides that utilizes cam follower bearings mounted on eccentric shafts
• Convenient control panel with overload protection
• Heavy-duty cast iron saw head and sturdy base
• Fully adjustable hydraulic downfeed system
• Large hand wheel and built-in gauge provides easy blade tensioning
• Quick positioning vise reduces set-up time
• Coolant system
• Adjustable material stop
• 1" Bi-Metal blade

Specifications:

• Round at 45 Degrees | 6-1/4"
• Round at 60 Degrees | 3-1/2"
• Round at 90 Degrees | 8-3/4"
• Rectangle at 45 Degrees | 6-1/4" x 7-1/4"
• Rectangle at 60 Degrees | 3-1/2" x 3-7/8"
• Rectangle at 90 Degrees | 8-3/4" x 7"
• Head Movement | 60°
• Blade Size | 1" x .035" x 96-1/2"
• Blade Length | 96-1/2"
• Blade Wheel Diameter | 11-5/8"
• Blade Speed (SFPM) | 137, 275
• Bed Height | 38-7/16"
• Drive | Geared Head
• Motor | 1-1/2 HP, 230V, 3Ph
• Prewired Voltage | 230v
• Overall Dimensions | 51"l x 33"w x 59-1/4"h
• Weight | 485 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
