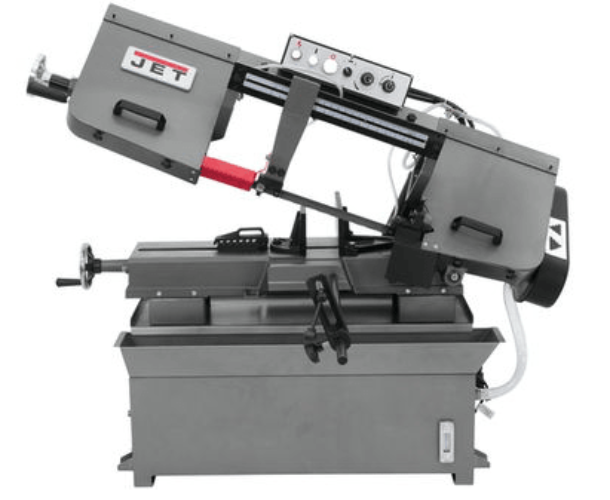

JET 414468 HBS-916W 9" x 16" Bandsaw
$5,179.00
Unit price
/
Unavailable
JET 414468 HBS-916W 9" x 16" Bandsaw is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Jet HBS-916W Horizontal Band Saw
Large hand wheel, built-in gauge, blade guides, quick-positioning vise and removable chip tray are but a few of the features that make this JET Horizontal Band saw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time.
Features:
- Large handwheel and built-in gauge for easy blade tensioning
- Coolant is distributed through the blade guides
- Blade guides feature parallel double row ball bearing support
- Blade brush is built-in and self-propelled
- Quick-positioning vise with fully adjustable jaws swivels to 45
- Removable chip tray for quick clean-up
- Blade is fully guarded regardless of blade guide position
- Fully adjustable hydraulic downfeed with separate on/off valve
Band Saw Standard Equipment:
- Automatic shut-off after cut
- Complete coolant system
- Carbide blade guides with rollers
- Bi-metal 4/6 T.P.I, saw blade
- Adjustable material stop
Specifications:
- Stock Number | 414468
- Model Number | HBS-916W
- Round Capacity at 90 | 9"
- Round Capacity at 45 | 9"
- Rectangle Capacity at 90 | 2" x 16" - 9" x 14"
- Rectangle Capacity at 45 | 9" x 6-1/8"
- Throat Depth | 9"
- Vise Swivels | 45
- Blade Size | 1" x .035" x 119-1/2"
- Blade Wheel Diameter | 13"
- Blade Speeds (SFPM) | 82, 132, 170, 235
- Bed Height | 25"
- Motor | 1-1/2 HP, 1 Ph, 115/230V, Prewired 11 5V
- Overall Dimension | 65" x 28"
- Net Weight | 625 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
- CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
