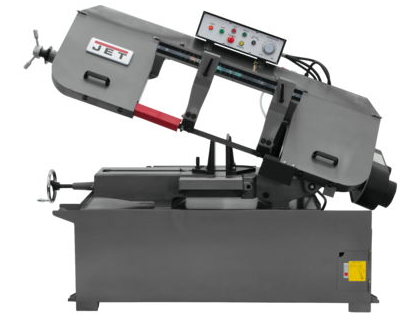

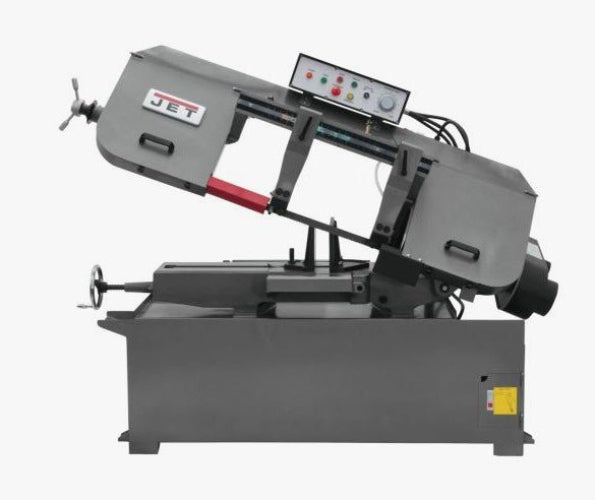

Jet HBS-1321W Industrial Band Saw

Jet Saw Features:

• Semi-automatic bow raises after cut is complete to predetermined height
• Fully adjustable hydraulic downfeed controls the rate of descent
• Variable blade speed allows optimum cutting performance
• Safety switch shuts off motor if band breaks
• Quick-positioning vise lessens set-up time
• Large handwheel and built-in gauge provides easy blade tensioning
• Coolant is distributed through the blade guides
• Cleaning hose and nozzle assist in washing chips away
• Easy access chip tray allows quick cleanup
• Self-propelled blade brush extends the blade life

Standard Equipment:

• Automatic shut-off after cut
• Complete coolant system
• Carbide blade guides with rollers
• Bi-metal 3/4 T.P.I, saw blade
• Adjustable material stop

Specifications:

• Stock Number | 414471
• Model Number | HSB-1321W
• Round Capacity at 90 | 13"
• Round Capacity at 45 | 13"
• Rectangle Capacity at 90 | 13"w x 21"h
• Rectangle Capacity at 45 | 13"w x 15-1/2"h
• Throat Depth | 13"
• Blade Size | 1-1/4" x .042" x 161-1/2"
• Blade Wheel Diameter | 18"
• Blade Speeds (SFPM) | 66 to 264
• Bed Height | 32"
• Motor | 3HP, 3Ph, 230/460V; Prewired 230V
• Coolant Motor | 1/6 HP
• Floor Space Required | 84" x 32-1/2"
• Net Weight | 1,276 lbs
