Jet | SKU: JET414472

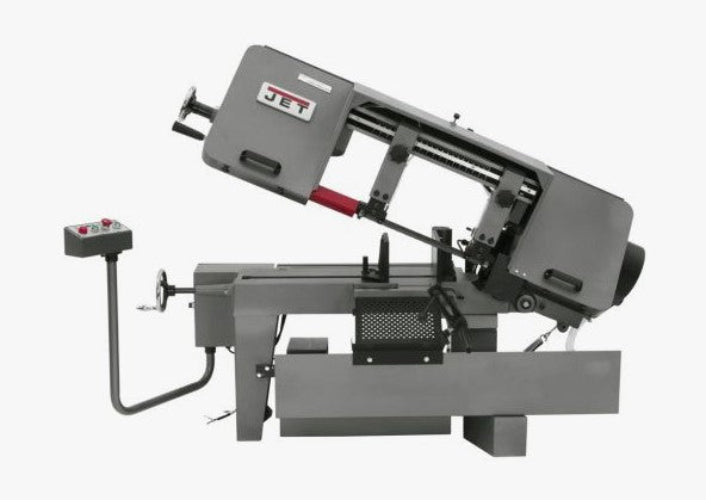

JET 414472 J-7020 10 X 16 Horizontal Bandsaw

$6,989.00

Jet J-7020 Horizontal Bandsaw

Exclusive 6-point blade guide assemblies and swivel control panel on this rugged JET saw enhance overall function.

Variable speed drive systems allows the operator to fine tune the blade speed fast and easily
Exclusive 6 contact point blade guide assemblies
Exclusive swivel control panel
One piece wheel cover
Heavy duty rugged transmission utilizes hardened and ground gears operating in an oil bath
Adjustable blade guides with 6 point contact combination bearing and carbide
Swing away control panel
Patented 3 jaw rapid action vise
Cast iron blade wheels
Coolant system
1" Bi-metal blade
Adjustable material stop

Part Number | 414472
Motor | 1-1/2 HP, 115/230V, 1Ph, Prewired 230V
Round at 90 Degrees | 10"
Round at 45 Degrees | 10"
Rectangle at 90 Degrees | 9" X 16"
Square at 90 Degrees | 10"
Blade Size | 1" x .035 x 135"
Blade Speeds (SFPM) | 100 - 350
Bed Height | 23-1/2"
Blade Length | 135"
Rectangle at 45 | 9" x 8"
Web Description | J-7020 10 X 16 Horizontal Bandsaw 1-1/2 HP, 115/230V, 1 Ph
Model Number | J-7020
Height | 41"
Width | 31"
