Jet | SKU:
JET414473
JET 414473 HBS-1018W 10" Horizontal Bandsaw
$5,899.00
Unit price
/
Unavailable
JET 414473 HBS-1018W 10" Horizontal Bandsaw is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

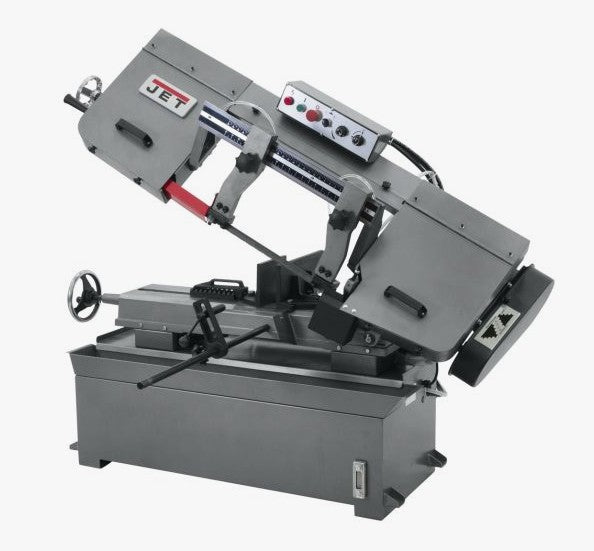

Jet HBS-1018W Industrial Bandsaw
The JET 10" x 18" Horizontal Bandsaw boasts a 2HP motor. It is fully equipped with a large handwheel, quick positioning vise, automatic shut-off, 4/6VT bi-metal blade, and fully adjustable hydraulic downfeed with separate on/off valve.
Features:
- 10" HORIZONTAL BANDSAW
- Large handwheel and built-in gauge for easy blade tensioning
- Coolant is distributed through the blade guides
- Blade guides feature parallel double-row ball bearing support
- Blade brush is built-in and self-propelled
- Quick-positioning vise with fully adjustable jaws swivels to 45
- Removable chip tray for quick clean-up
- Blade is fully guarded regardless of blade guide position
- Fully adjustable hydraulic downfeed with separate on/off valve
- Automatic shut-off after cut
- Carbide blade guides with rollers
- Coolant system
- 4/6VT Bi-metal blade
- Adjustable material stop
Standard Equipment:
- Automatic shut-off after cut
- Complete coolant system
- Carbide blade guides with rollers
- Bi-metal 4/6 T.P.I, saw blade
- Adjustable material stop
Specifications:
- Part Number | 414473
- Motor | 2HP, 230V only, 1Ph
- Round at 90 Degrees | 10"
- Round at 45 Degrees | 7-1/2"
- Rectangle at 90 Degrees | 10" x 16" / 6-1/2" x 18"
- Blade Size | 1" x .035" x 130-1/2"
- Blade Speeds (SFPM) | 82, 132, 210, 330
- Bed Height | 23-1/2"
- Blade Length | 130-1/2"
- Rectangle at 45 | 10 x 7-1/2"
- Base/ 3 Legs Area Required | 69" x 28"
- Model Number | HBS-1018W
- Overall Dimensions | 70" x 31" x 44"
- Height | 43"
- Width | 22"
- Length | 68"
- Net Weight | 801 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
- CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
