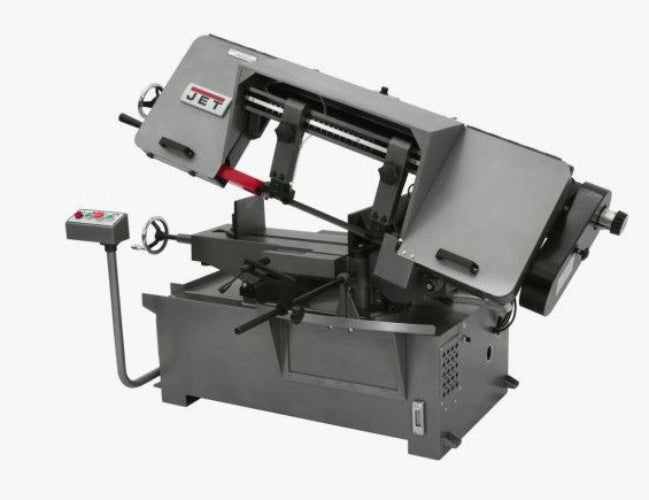

Jet J-7020M Horizontal Mitering Bandsaw

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

Features:

• Variable speed drive system allows the operator to fine tune the blade speed fast and easily
• Exclusive 6 contact point blade adjustable guide assemblies
• Combined with the side bearings are carbide pads, the back of the blade rides on two load bearings mounted on a pivot shaft so both bearings share the load equally
• Mitering head - the workpiece remains fixed while the head swivels to cut any angle 0° - 45°
• Heavy duty transmission utilizes hardened and ground gears operating in an oil bath
• Counterbalanced feed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder.
• Swing away control panel
• Cast iron blade wheels
• Coolant system
• 1" Bi-metal blade
• Adjustable material stop

Specifications:

• Motor | 1-1/2 HP, 115/230V, 1 Ph, Prewired 230V
• Round at 90 Degrees | 10"
• Round at 45 Degrees | 8-1/2"
• Rectangle at 90 Degrees | 9" X 16"
• Square at 90 Degrees | 10"
• Blade Size | 1" x .035" x 135"
• Blade Speeds (SFPM) | 100 - 350
• Bed Height | 25-1/ 2"
• Web Description | J-7020M 10" x 16" HORIZONTAL MITERING BANDSAW 1PH
• Model Number | J-7020M
• Height | 41"
• Width | 31"
• Length | 79"
• Net Weight | 1134 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if residential or liftgate is required. Please note that for residential deliveries someone must be there to accept delivery. When ordering the checkout cart will incorrectly state that this ships by UPS.
