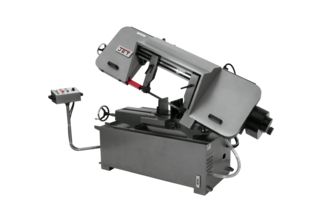

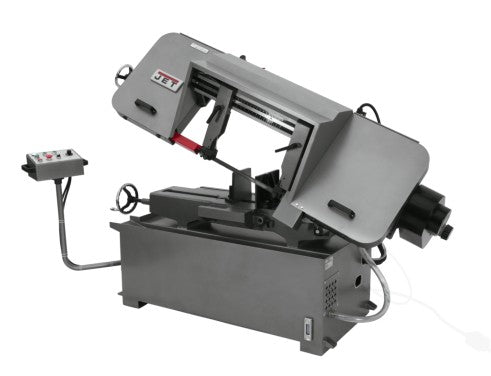

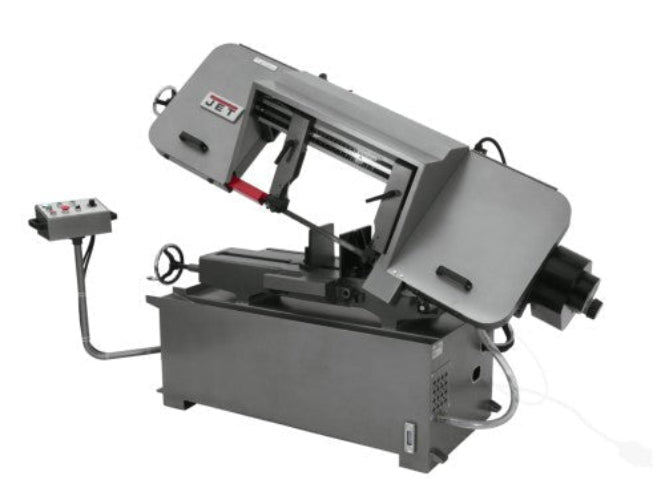

Jet 414476-4 J-7060-4, 12" x 20" Semi-Automatic Horizontal Bandsaw

This JET large capacity variable speed semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatically after each cut and cast iron band wheels give you the confidence of quality cuts, first time, every time.

Features:

• Swing away control panel houses major saw controls
• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
• Saw head raises hydraulically after each cut
• Variable speed drive system allows the operator to easily fine tune the blade speed
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Cast Iron blade wheels
• Patented 3-Jaw vise with rapid action moveable jaw for faster set up
• Coolant system
• Adjustable material stop
• 1" Bi-Metal blade

Specifications:

• Cutting Capacity | 12"w x 20"d
• Round at 90 Degrees | 12"
• Round at 45 Degrees | 12"
• Rectangle at 90 Degrees | 12" x 20"
• Rectangle at 45 Degrees | 12" x 12"
• Vise Swivels | 45°
• Blade Speeds | 82 - 262
• Blade Wheel Diameter | 17"
• Blade Length | 156"
• Blade Size | 1 x .035" x 156"
• Bed Height | 26-1/4"
• Motor | 3 HP, 460V, 3Ph
• Weight | 1456 lbs
• Overall Dimensions | 87"l x 37-1/2"w x 53"h
• Drive | Variable Speed

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
