JET 414478 J-7040 10 x 16 Horizontal Bandsaw

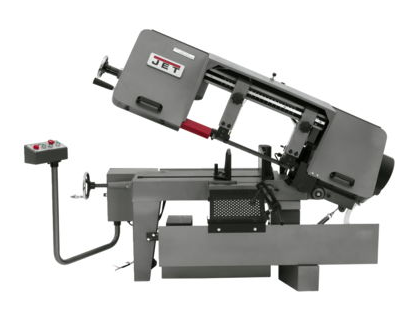

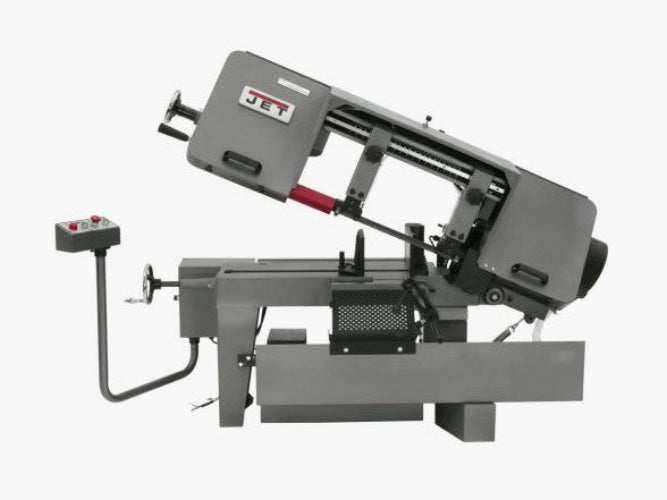

Jet J-7040 Horizontal Bandsaw

Exclusive 6-point blade guide assemblies and swivel control panel on this rugged JET saw enhance overall function and performance.

Features:

Variable speed drive systems allows the operator to fine tune the blade speed fast and easily
Swing away control panel
Exclusive 6 contact point blade adjustable
Combined with the side bearings are carbide pads, the back of the blade rides on two mounted on a pivot shaft so both bearings share the load equally
Counter balanced feed system is controlled by a dual system of counterbalanced
1" Bi-metal blades
Cast iron blade wheels

*** Actual Product May Differ From Image Shown ***

Specifications:

Part Number | 414478
Motor | 2 HP, 230/460V, 3 Ph, Prewired 230V
Round at 90 Degrees | 10"
Round at 45 Degrees | 10"
Rectangle at 90 Degrees | 9" x 16"
Square at 90 Degrees | 10"
Blade Size | 1" x .035" x 135"
Blade Speeds (SFPM) | 100 - 350
Bed Height | 23-1/2"
Blade Length | 135"
Rectangle at 45 | 9" x 8"
Web Description | J-7040 10 x 16 HORIZONTAL BANDSAW 2HP, 230V, 3PH
Model Number | J-7040
Height | 41"
Width | 31"
Length | 79"
Net Weight | 973 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
