Jet | SKU:
JET414479
JET 414479 MBS-1014W1 10" Horizontal Mitre Bandsaw 1 PH
$8,299.00
Unit price
/
Unavailable
JET 414479 MBS-1014W1 10" Horizontal Mitre Bandsaw 1 PH is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

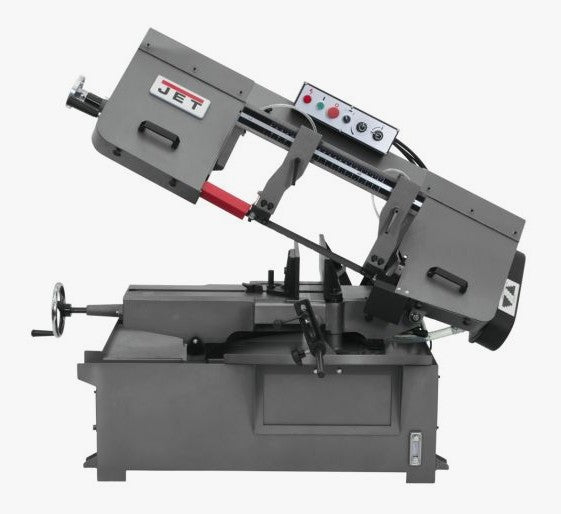

Jet MBS-1014W Miter Band Saw
JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.
Features:
- Unique design features a swivel-head for miter cutting structural, pipe and tubing
- Miter head swivels from 90 to 45, while the stock remains in the same position
- Large, easy-to-read scale for positioning saw head
- Quick-positioning vise lessens set-up time
- Large handwheel and built-in gauge for easy blade tensioning
- Coolant is distributed through the blade guides
- Blade brush is built-in and self-propelled
- Fully adjustable hydraulic downfeed with separate on/off valve
Standard Equipment:
- Automatic shut-off
- Complete coolant system
- Carbide blade guides with rollers
- Bi-metal 4/6 T.P.I, saw blade
- Adjustable material stop
Specifications:
- Round Capacity at 90 | 10"
- Round Capacity at 45 | 9"
- Rectangle Capacity at 90 | 10"w x 14"h
- Rectangle Capacity at 45 | 9"w x 10"h
- Throat Depth | 10-1/2"
- Vise Swivels | 45
- Blade Size | 1" x .035" x 130"
- Blade Wheel Diameter | 14"
- Blade Speeds (SFPM) | 82, 132, 210, 330
- Bed Height | 25"
- Motor- MBS-1014W-1 | 2 HP, IPh, 230V only
- Motor- MBS-1014W-3 | 3 HP, 3 Ph, 230/460V, Prewired 230V
- Floor Space Required | 26" x 69"
- Net Weight | 1,067 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
- CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
