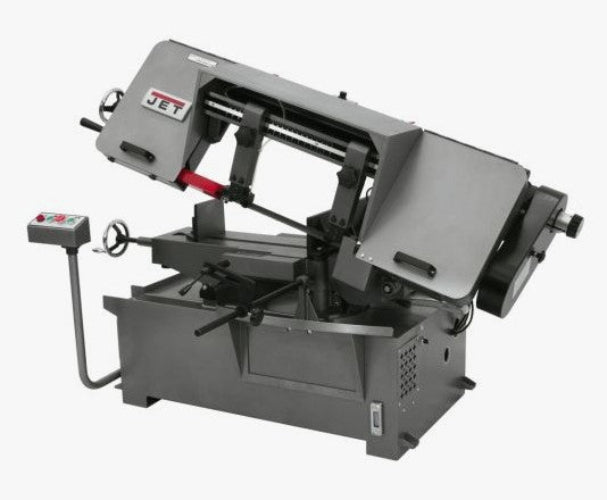

Jet J-7040M-4 Miter Bandsaw

JET Mitering Horizontal band saws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Band saws are built to last and deliver precision results.

Features:

• Variable speed drive system allows the operator to fine tune the blade speed fast and easily
• Exclusive 6 contact point blade guide assemblies
• One piece wheel cover
• Heavy duty, rugged transmission utilizes hardened and ground gears operating in an oil bath
• Adjustable blade guides with 6 point contact combination bearing and carbide
• Counterbalanced feed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
• Swing away control panel
• Cast iron blade wheels
• Coolant system
• 1" Bi-metal blade
• Adjustable material stop

Specifications:

• Motor | 2HP, 230/460VAC, 3ph, Prewired 460VAC
• Round at 90 Degrees | 10"
• Round at 45 Degrees | 8-1/2"
• Rectangle at 90 Degrees | 9" x 16"
• Square at 90 Degrees | 10"
• Blade Size | 1" x .035" x 135"
• Blade Speeds (SFPM) | 100-350
• Bed Height | 25-1/2"
• Web Description | J-7040M-4 10 x 16 MITER BANDSAW 2HP, 460V, 3PH
• Model Number | J-7040M-4
• Height | 41"
• Width | 31"
• Length | 79"
• Net Weight | 1125 lbs
