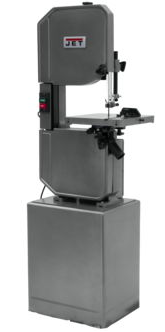

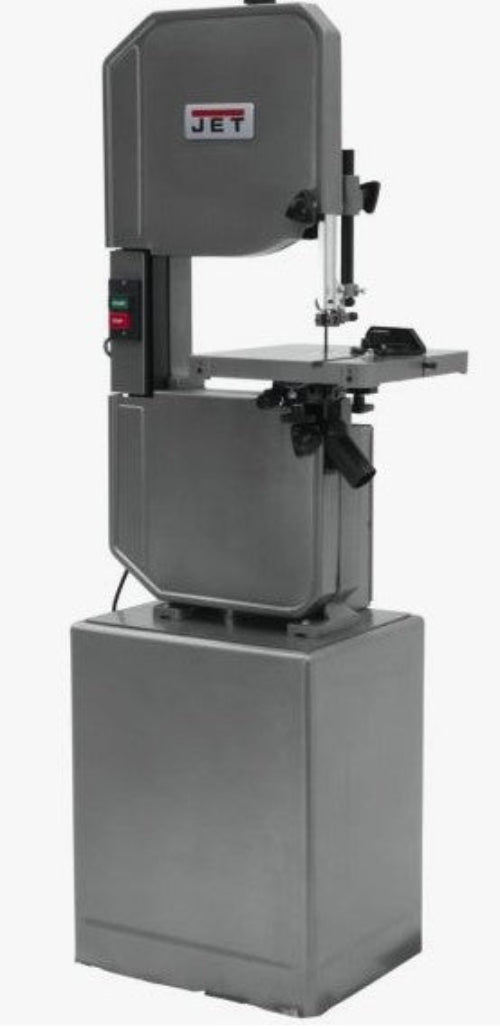

Jet J-8201VS 14" Wood/Metal Vertical Variable Speed Band Saw

The line of JET Metal/Wood Vertical Bandsaws offers machine and fabrication professionals all the power and precision in a package that meets their individual specifications. JET has engineered a gear box that permits cutting of a great variety of materials, then backed it with the industry leading two year warranty

Features:

• Cast iron frame
• Solid one piece steel base for extra stability
• Conveniently located on/off switch
• Variable speed drive system (8201VS & 8203VS)
• Exclusive gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal plastic cutting applications.
• Miter gauge
• Dust chute
• Saw blades (wood & metal)
• Adjustable table

 Specifications:

• Model Number | J-8201VS
• Overall Dimensions | 20" x 16" x 68"
• Height | 73"
• Width | 22.5"
• Length | 25"
• Net Weight | 325 lbs
• Gross Weight | 400 lbs
• Motor | 1 HP, 115V, 1 Ph, 1725 RPM
• Cutting Capacity | 13-1/2"
• Cutting Capacity Height | 6"
• Blade Size | 3/8" x .025" x 92-182"
• Blade Speeds (SFPM) | Variable 90-340
• Throat Depth | 13-1/2"
• Blade Length | 92-1/2"
• Blade Width (Min-Max) | 1/8" - 3/4"
• Table Size | 14" x 14"
• Table Tilt | 15°
• Table Height at 90 Degrees | 68"
• Cutting Speeds Metal (SFPM) | 90 - 340 Variable speeds
• Cutting Speeds Wood (SFPM) | 3300
• Miter Gauge Groove Wide x Deep | 3/4" X 3/8"
• Table Tilt to Right | 45
• Under Guide | 6"
• Under Guide with Riser Block | 12"
