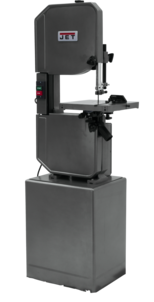

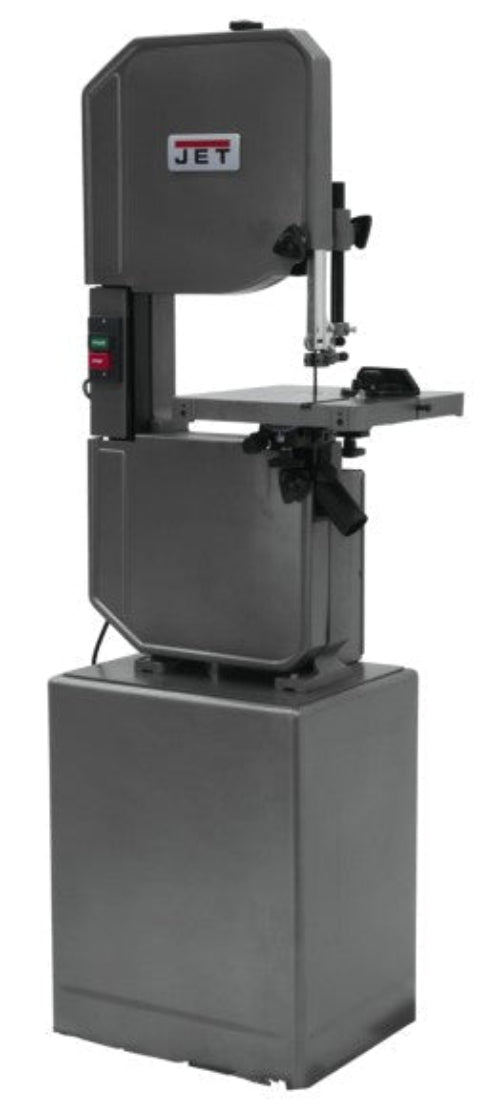

Jet 414504C J-8203K, 14" Metal/Wood Vertical Bandsaw

The line of JET Metal/Wood Vertical Bandsaws offers machine and fabrication professionals all the power and precision in a package that meets their individual specifications. JET has engineered a gear box that permits cutting of a great variety of materials, then backed it with the industry leading two year warranty

Features:

• For added safety, the J-8203K follows strict guidelines and electrical requirements to be certified by CSA Group
• Solid, one-piece steel, base for extra stability
• Conveniently located on/off switch
• Variable speed drive system (8201VS)
• Gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal and plastic cutting applications
• Miter gauge
• Dust chute
• Adjustable table
• 14 TPI Metal Cutting Blade Included
• 6 TPI Wood Cutting Blade Included

Specifications:

• Blade Speeds Metal (SFPM) | 39, 57, 78, 107, 142, 196, 278
• Blade Speeds Wood (SFPM) | 3,300
• Height Capacity (Max.) | 6"
• Throat Capacity | 12"
• Table Size | 14"l x 14"w
• Table Tilt to Right (Deg.) | 45
• Table Tilt to Left (Deg.) | 15
• Blade Size | 3/8" x .025" x 92-1/2"
• Table Height | 44"
• Blade Length | 92-1/2"
• Blade Width (Min.-Max.) | 1/8" - 3/4"
• Motor | 1 HP, 230/460V, 3Ph
• Prewired | 230V, **Surcharge applies for 460V re-wire**
• Shipping Dimensions | 25.5"l x 22.5"w x 73"h
• Overall Dimensions | 25-1/2"l x 22-3/8"w x 73-1/2"h
• Weight | 280 lbs

• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
