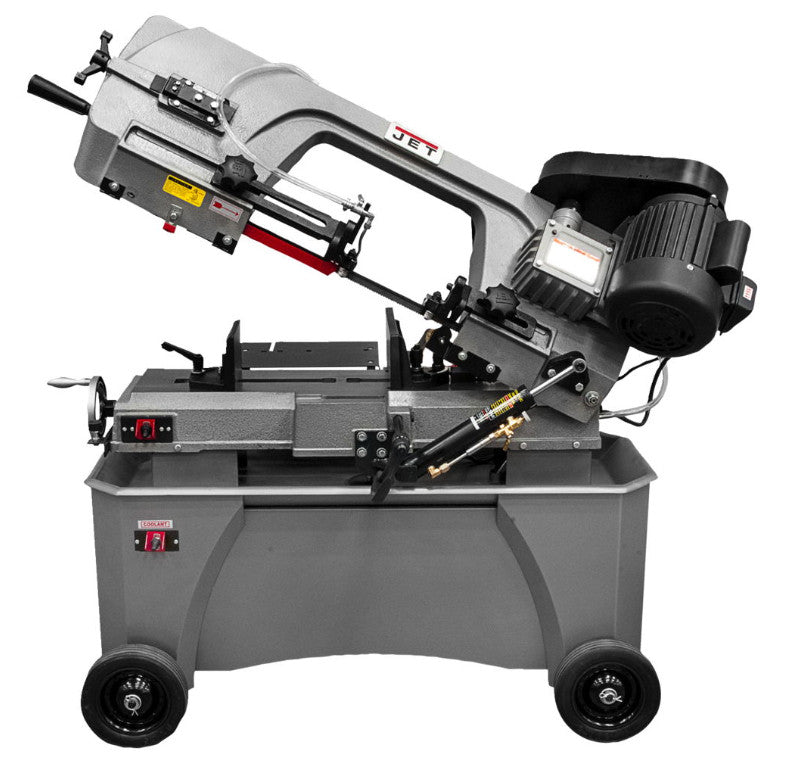

JET HVBS-712D, 7" x 12" Deluxe Horizontal/Vertical Bandsaw

The JET HVBS-712D Deluxe Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. Increased the width and height of the stand and added new features that exceed expectations. The HVBS-712D is another innovative JET product packed with features you’ve come to expect

Features:

• Large 10" x 12" infeed table assembly extends the support area and can be used in either horizontal or vertical positions
• Multi-position blade guides enhance use in vertical position by increasing the throat capacity from 4" to 8" and creates a safer working position
• Tool-less quick lock vise with preset mitering positions at 15°, 30° & 45°
• Improved Height and width of stand with built-in storage cabinet and chip tray
• Micro adjustable tool-less material stop for accurate set-up and repeat-ability
• CSA/CUS : Following strict guidelines and electrical requirements, this JET Saw is CSA/CUS certified
• Blade drive is a belt to sealed, hardened and ground gear drive system
• Blade wheels are made from flanged cast iron for increased durability
• Auto shut-off after cut
• Adjustable ball bearing blade guides
• Cast mounted adjustable hydraulic downfeed
• Complete coolant system
• Four 8" rubber wheels for ease of movement
• 3/4" Bi-Metal blade

Specifications:

• Cutting Capacity | 7"w x 12"d
• Round at 90 Degrees | 7"
• Round at 45 Degrees | 5"
• Rectangle at 90 Degrees | 4" x 11", 7" x 10-1/4"
• Rectangle at 45 Degrees | 6" x 4"
• Square at 90 Degrees | 7" x 7"
• Square at 45 Degrees | 5" x 5"
• Throat Depth | 7"
• Head Movement (Deg.) | 0
• Vise Swivels (Deg.) | 45
• Blade Speeds (SFPM) | 86, 132, 178, 260
• Blade Wheel | 11-3/4" dia
• Blade Size | 3/4" x 0.032" x 93"
• Bed Height | 22-1/4"
• Coolant Capacity | 1 gal
• Motor | 3/4 HP, 115/230V, 1Ph
• Weight | 418 lbs
• Overall Dimensions | 48"l x 17"w x 44"h
• Drive | Step Pulley
