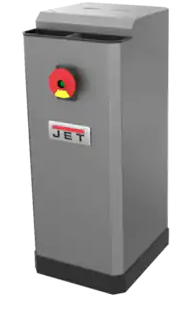

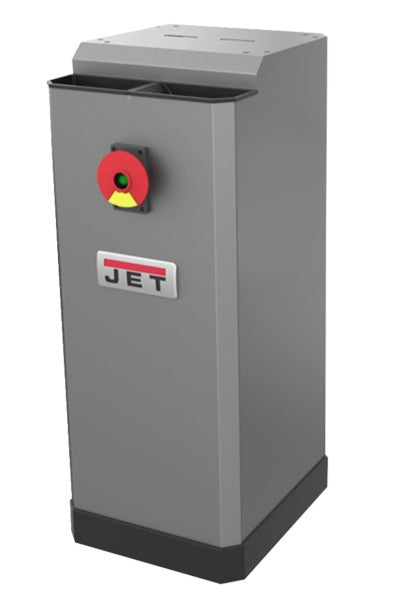

Jet 414800 JDCS-505, Metal Dust Collector Stand

JET’S new Metal Dust Collection Stand is great for collecting abrasive dust from most brands Bench Grinders and Bench Top Belt & Disc Sanders.

Features:

• Universal Metalworking Dust Collection Stand, fits ANY BRAND bench grinder and bench top belt & disc sanders
• Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection
• Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips
• Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector
• Chips and dust collect into a metal drawer that is easy to empty, and the high temperature filters are replaceable
• ANY BRAND bench top belt, disc or combination machine can be mounted using the optional Universal Adapter Plate (414830)
• Heavy-Duty 16 gauge steel construction
• Four Adjustable Leveling Pads
• Large On/off switch with safety key
• CSA/CUS Certified

Specifications:

• Style | Stand
• Maximum CFM | 472
• Maximum Hose Velocity (SFPM) | 3,465
• Static Pressure (Wc.) | .748" H2O
• Filter Size | 6-3/4"w x 2-5/8"l x 13-1/2"d
• Filter Efficiency | 90% @ 50 Microns
• Sound Rating (Db.) | 75 db @ 10 Ft
• Max. Static Pressure (Wc.) | 2.44" H2O
• Hose Size | 2 Inlets @ 3"
• Motor | 1/2 HP, 115V, 1Ph (20A)
• Overall Dimensions | 15-1/2"l x 16"w x 32-1/4"h
• Weight | 110 lbs
