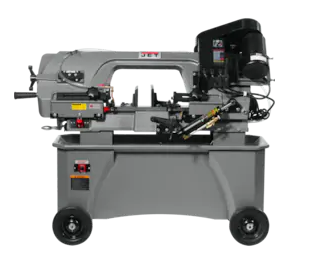

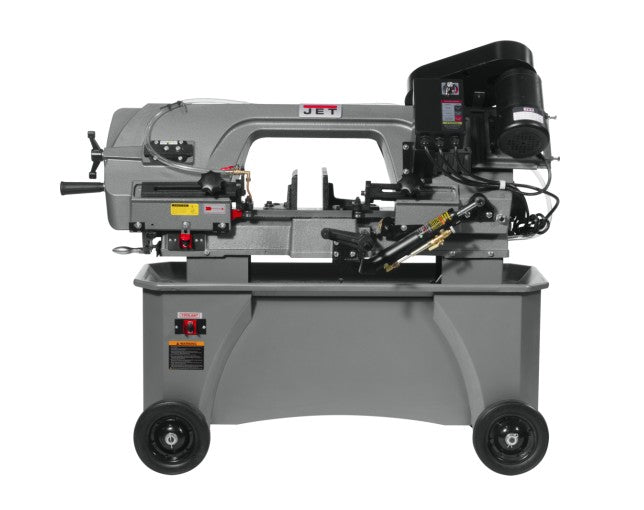

Jet 415559 HVBS712V, 7" x 12" Variable Speed Horizontal / Vertical Bandsaw

The JET HVBS-712V Horizontal/Vertical Variable Speed metalworking bandsaw’s industry-leading innovation is centered around increased output and operator safety. Powered by a 3-step gear one horse power DC motor, the HVBS-712V produces unbeatable torque while consuming less energy and is capable of producing speeds from 88 – 270 SFPM.

Features:

• Sealed Hardened and Ground Gear Drive
• Heavy Casted Iron Bow and Bed
• large torque of New DC motor
• Improved Wider Stand with Built-in Storage Cabinet and Chip Tray
• Blade Wheels are made of flanged cast iron
• CSA/US Certified
• UL Listed Switches
• Blade Tensioning Guides
• Auto Shut-Off after Cut
• Blade is fully guarded
• Cast Mounted Hydraulic Downfeed for Ease of Cut
• Speed changes are now done with the turn of a knob, no need to change belts
• Four 8" Rubber Wheels for Ease of Movement
• Tool-less Quick Change Vise Miters to 45 degrees
• Side-Eccentric Shaft and ball bearing: Rear-Ball Bearing Blade Guides
• Adjustable Hydraulic Feed System
• Vertical 9" x 12" Worktable
• STANDARD EQUIPEMENT
• Rapid Action Vise
• Multi-Position Blade Guide
• Side-Eccentric Shaft and ball bearing: Rear-Ball Bearing
• Infeed Table Assembly
• Leveling Feed & 2 8" Rubber Wheels for Ease of Movement
• Adjustable Tooless Material Stop
• Bi-Metal 5/8T Blade
• Speed changes are now done with the turn of a knob, no need to change belts

Specifications:

• Round at 90 Degrees | 7"
• Round at 45 Degrees | 4-1/2"
• Rectangle at 90 Degrees | 1"h x 12"w; 2"h x 11-1/4"w; 4"h x 11"w; 7"h x 10-3/8"w
• Rectangle at 45 Degrees | 6-1/2"h x 4-1/2"w
• Square at 90 Degrees | 7" x 7"
• Square at 45 Degrees | 4-1/2" x 4-1/2"
• Throat Depth | 7"
• Vise Swivels (Deg.) | 45
• Blade Speeds (SFPM) | 88 - 270
• Blade Wheel Diameter | 11-3/4"
• Blade Size | 3/4" x .035" x 93"
• Bed Height | 22-1/4"
• Motor | 7.5 Amp, 3500RPM DC motor
• Overall Dimensions | 48"l x 17"w x 40"h
• Vertical Work Table | 9 x12
• Net Weight | 368 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
