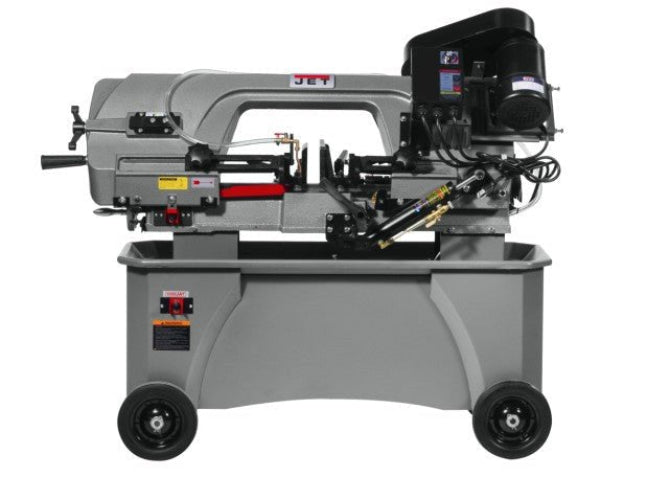

Jet 415560 HVBS712DV, 7" x 12" Variable Speed Horizontal / Vertical Bandsaw Deluxe

The JET HVBS-712DV Horizontal/Vertical Variable Speed metalworking bandsaw’s industry-leading innovation is centered around increased output and operator safety. Powered by a 3-step gear one horse power DC motor, the HVBS-712V produces unbeatable torque while consuming less energy and is capable of producing speeds from 88 – 270 SFPM. The multi-position blade guide increases throat capacity from 4’’ to 8’’ inches in vertical position.

Features:

• Sealed Hardened and Ground Gear Drive
• Heavy Casted Iron Bow and Bed
• large torque of New DC motor
• Improved Wider Stand with Built-in Storage Cabinet and Chip Tray
• Blade Wheels are made of flanged cast iron
• CSA/US Certified
• UL Listed Switches
• Blade Tensioning Guides
• Auto Shut-Off after Cut
• Blade is fully guarded
• Cast Mounted Hydraulic Downfeed for Ease of Cut
• Speed changes are now done with the turn of a knob, no need to change belts
• Four 8" Rubber Wheels for Ease of Movement
• Tool-less Quick Lock Vise with Preset Mitering Positions at 15, 30 & 45 degrees
• Multi-Position Blade Guide enhance use in Vertical position and increases the throat capacity from 4" to 8"
• Adjustable Hydraulic Feed System
• Vertical 9" x 12" Worktable
• Large 9" x 12" Infeed Table Assembly extends the support area and can be used in either horizontal or vertical positions
• STANDARD EQUIPEMENT
• Tool-less Quick Lock Vise with Preset Mitering Positions at 15, 30 & 45 degrees
• Multi-Position Blade Guide
• Side-Eccentric Shaft and ball bearing: Rear-Ball Bearing
• Improved wider base with Built-in Storage
• Infeed Table Assembly
• Leveling Feed & 2 8" Rubber Wheels for Ease of Movement
• Micro Adjustable Tool-less Material Stop allows for quicker set-up and accurate repeatability
• Adjustable Tooless Material Stop
• Bi-Metal 5/8T Blade
• Speed changes are now done with the turn of a knob, no need to change belts

Specifications:

• Round at 90 Degrees | 7"
• Round at 45 Degrees | 5"
• Rectangle at 90 Degrees | 1"h x 12"w; 2"h x 11-1/4"w; 4"h x 11"w; 7"h x 10-1/4"w
• Rectangle at 45 Degrees | 6"h x 4"w
• Square at 90 Degrees | 7" x 7"
• Square at 45 Degrees | 5" x 5"
• Throat Depth | 7"
• Vise Swivels (Deg.) | 45
• Blade Speeds (SFPM) | 88 - 270
• Blade Wheel Diameter | 11-3/4"
• Blade Size | 3/4" x .035" x 93"
• Bed Height | 22-1/4"
• Motor | 1HP,115V,1Ph , 7.5 Amp, 3500RPM DC motor
• Overall Dimensions | 48"l x 17"w x 44"h
• Vertical Work Table | 9" x 12"
• Net Weight | 368

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
