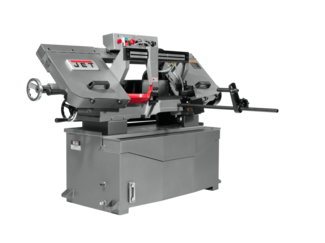

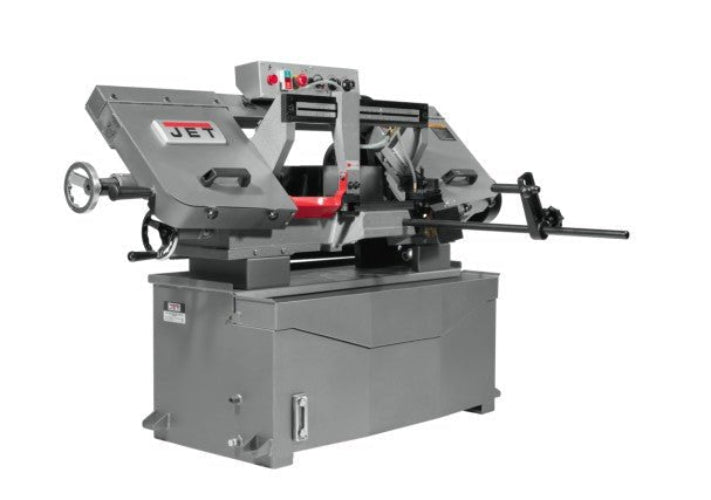

Jet 424469 HBS-916EVS, 9" x 16" EVS (Electronic Variable Speed) Horizontal Bandsaw

Electronic variable speed, oversized removeable chip tray, Large handwheel, built-in gauge, blade guides and quick-positioning vise are but a few of the features that make this JET Horizontal Bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time

Features:

• Electronicly controled blade speed from 82 - 330 SFPM
• Proprietary oversized chip tray design minimizes over spray and reduces clean up
• Large hand wheel and built-in gauge provides easy blade tensioning
• Quick-positioning vise with fully adjustable jaws, swivels to 45°
• Blade is fully guarded, regardless of blade guide position
• Carbide blade guides feature parallel double-row ball bearing support
• Standard coolant system with coolant is distributed through the blade guides
• Built-in, self propelled blade brush extends blade life
• Fully adjustable hydraulic downfeed with separate on/off control valve
• Automatic shut-off after cut
• Adjustable material stop
• 1" Bi-Metal blade

Specifications:

• Cutting Capacity | 9"w x 16"d
• Round at 90 Degrees | 9"
• Round at 45 Degrees | 6-1/8"
• Rectangle at 90 Degrees | 8-1/2" x 14" and 2" x 16"
• Rectangle at 45 Degrees | 9" x 6-1/8"
• Vise Swivels | 45°
• Blade Speeds (SFPM) (EVS ) | 82-330
• Blade Wheel Diameter | 13"
• Blade Length | 119-1/2"
• Blade Size | 1" x .035" x 119-1/2"
• Bed Height | 23-1/2"
• Amperage | 5
• Motor | 1-1/2 hp
• Prewired | 115v
• Overall Dimensions | 67"l x 25"w x 46-1/4"h
• Drive | EVS
• Overall Assembled (Bow Lowered) | 65"l x 25"w x 67"h
• Shipping Weight | 818 lbs
• Net Weight | 726 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
