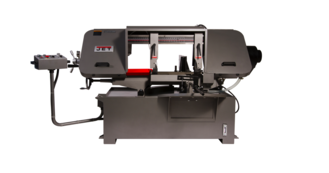

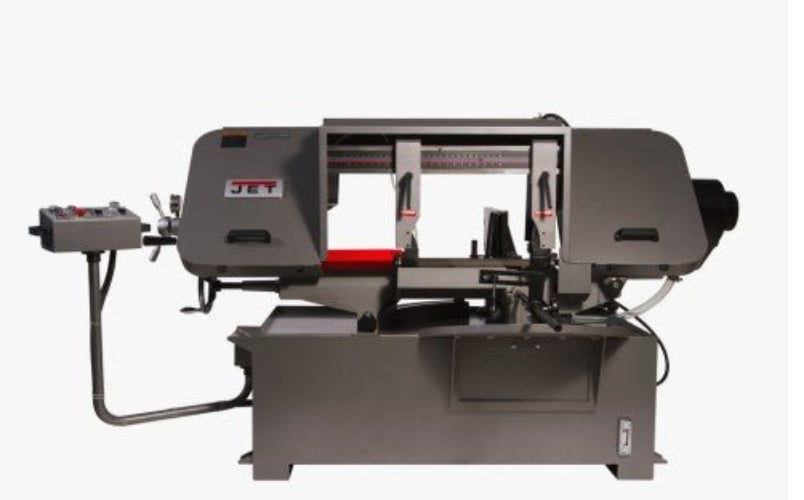

Jet 424476 HBS-1220MSA, 12" x 20" Semi-Automatic Mitering Variable Speed Bandsaw

This JET large capacity , semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatic while the mitering head allows the user to cut up to a 45° angle. The hydraulic down feed control is easily adjusted, enabling feed rates to evolve with various types of materials.

Features:

• Heavy duty construction reduces vibration and deflection
• CSA/US: Following strict guidelines and electrical requirements, this JET Saw is CSA/US certified
• Automatic blade breakage sensor detects accidental breakage and interrupts the power
• Blade is fully guarded for operator safety
• Auto shut off at the end of the cut
• Mitering head - the workpiece remains fixed while the head swivels to cut any angle 0° tp 45°
• Semi-Automatic bow raises after cut to predetermined height
• Blade Tensioning Meter
• Built-in self propelled blade brush prevents chip build up in blade guides
• Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with the various types of materials
• Variable speed drivetrain allows theoperator to fine tune the blade speed quickly & easily
• Auxiliary roller support on back of vise
• One piece blade cover makes chanaging blades extremely easy
• Circulating coolant system through both blade guides
• Swing away control arm puts the controls at the Operator fingertips

Specifications:

• Round at 45 Degrees | 11-7/32"
• Round at 90 Degrees | 11-13/16"
• Rectangle at 45 Degrees | 12-9/16" x 11-7/32"
• Rectangle at 90 Degrees | 16-1/2" x 11-13/16"; 18-1/8" x 8-5/8"; 19-1/4" x 4"
• Head Movement (Deg.) | 45
• Blade Size | 1" x 0.037" x 156"
• Blade Wheel Diameter | 17-3/32" x 1-3/16"
• Blade Speed (SFPM) Variable, | 90-370
• Bed Height | 27-1/2"
• Motor | 3 HP , 230/460V, 3-Ph
• Prewired | 230V, Surcharge applies for 460V re-wire
• Maximum Vise Opening | 19-/5/8"
• Overall Dimensions | 87"l x 31.5"w x 53"h
• Weight | 1606 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
