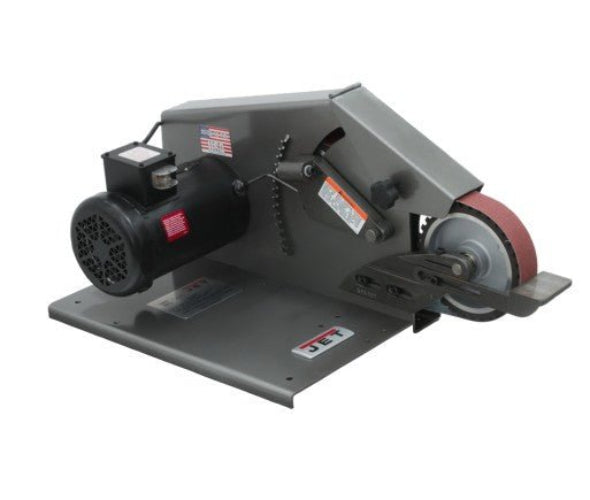

Jet J-4103 2 x 72 Square Wheel Belt Grinder 115V 1Ph | 577000

The JET Square Wheel Grinder is a belt grinder that uses a flat platen and idler wheels at each end to achieve a long, flat grinding surface. This innovative design permits grinding on the front wheel, which is square to the work and not crowned. The JET Square Wheel Belt Grinder, Models J-4103 and J-4126AC, grind, deburr and chamfer with equal proficiency both internal/external on parts large and small parts. Accessories allow the user to convert the Square Wheel Belt Grinder for polishing or buffing finished parts

Features:

• Puts a satin finish on steel, iron or aluminum
• Grind difficult to reach areas with the 3" X 2" or 1-1/2" X 2" diameter contact wheels
• Yoke surface conforms to shape of the surface to produce an even, smooth finish
• For grinding, and refinishing cylindrical shapes.
• Performs intricate contouring or internal finishing on uniquely shaped parts
• Serrated contact wheel is used for removing heavy stock, cleaning up a weld or snagging a casting
• MADE IN THE USA

Specifications:

• Belt Size | 2"w x 72"l
• Belt Speed (SFPM) | 4,600
• Contact Wheel Size | 8"w x 2"l, 3"w x 2"l, 1-1/2"w x 2"l
• Motor | 1 HP, 115/230V, 1Ph
• Overall Dimensions | 17"l x 31"w x 17"h
• Weight | 163 lbs
