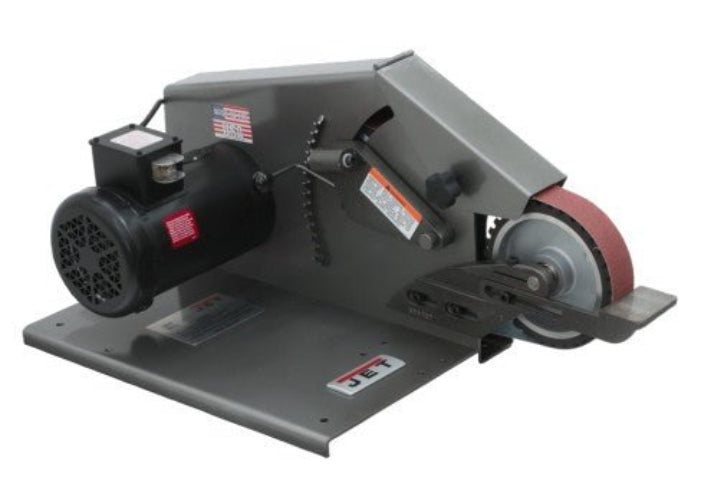

JET 577400 Single Speed Square Wheel Grinder

The JET Square Wheel Grinder is a belt grinder that uses a flat platen and idler wheels at each end to achieve a long, flat grinding surface. This innovative design permits grinding on the front wheel, which is square to the work and not crowned. The JET Square Wheel Grinder will grind, deburr and chamfer with equal proficiency both internal/external on parts. large or small. We have added a dust port to help keep your shop clean and sparks and debris away from the operator.

Features:

• Adjustable Dust port with high dust collection efficiency and drive sparks away from the Operator
• Aluminum casted drive wheel for years of use
• Flat and Angular Stock: Platen setting is the perfect angle for high speed, precision flat and level grinding
• Fully guarded on all grinding surfaces
• Steel frame and platen provides heavy duty construction
• Strong cast iron head casting
• Toggle on/off switch with safety cover

Specifications:

• Belt Size | 2"w x 72"l
• Belt Speed (SFPM) | 4600
• Motor | 1 HP, 115/230V, 1Ph
• Overall Dimensions | 35-7/16"l x 17"w x 21-1/4"h
• Net Weight | 126 lbs
• Gross Weight |162 lbs
