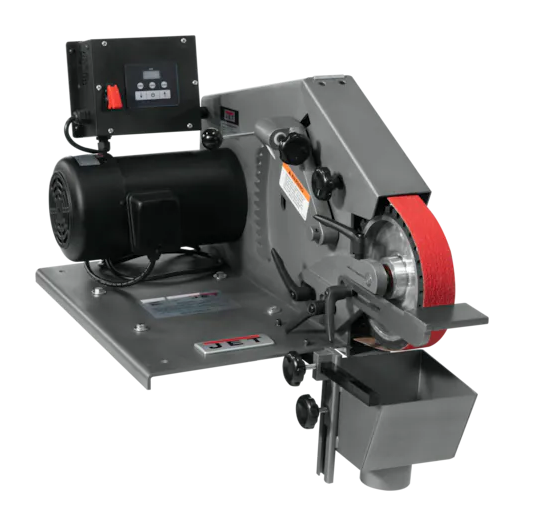

JET 577405 Variable Speed Square Wheel Grinder

The JET Square Wheel Grinder is a belt grinder that uses a flat platen and idler wheels at each end to achieve a long, flat grinding surface. This innovative design permits grinding on the front wheel, which is square to the work and not crowned. The JET Square Wheel Grinder will grind, deburr and chamfer with equal proficiency both internal/external on parts. large or small. We have added a dust port to help keep your shop clean and sparks and debris away from the operator.

Features:

• Adjustable Dust port with high dust collection efficiency and drive sparks away from the Operator
• Aluminum casted drive wheel for years of use
• Flat and Angular Stock: Platen setting is the perfect angle for high speed, precision flat and level grinding
• Fully guarded on all grinding surfaces
• Steel frame and platen provides heavy duty construction
• Strong cast iron head casting
• Totally enclosed fan cooled Inverter motor

Specifications:

• Belt Size | 2"w x 72"l
• Belt Speed (SFPM) | 2000 to 6000
• Motor | 1 HP, 115/230V, 1Ph
• Overall Dimensions | 35-7/16"l x 17"w x 21-1/4"h
• Net Weight | 131 lbs
• Gross Weight | 167 lbs

Warranty Information:

JET RED ASSURANCE 2-YEAR WARRANTY
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
