Jet  |  SKU: JET690006

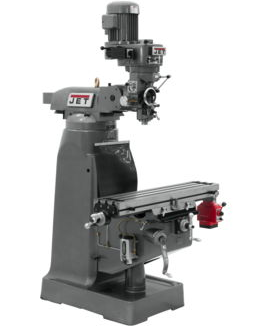

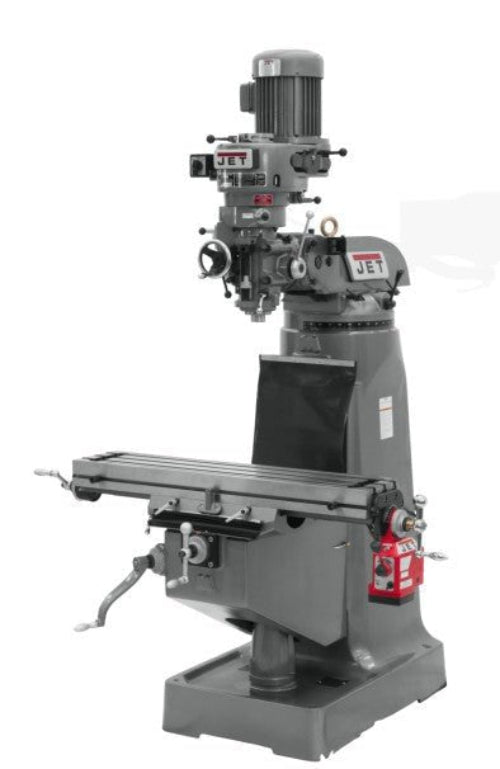

JET 690006 JTM2 Vertical Milling Machine

$12,729.00
Contact Us

JET JTM-2 Vertical Milling Machine

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty

Price is for the basic (JTM-2) model. Call for other options or models.

  • Meehanite casting
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings

Specifications:

  • Style | Step Pulley R8
  • Powerfeed | X-Axis
  • Spindle Taper (In. x TPI) | R-8
  • Table Size | 9"l x 42"w
  • Quill Diameter | 3-3/8"
  • Number of Spindle Speeds | 8
  • Range of Spindle Speeds (RPM) | 80 - 2,720
  • Quill Down Feed Rates (IPR) | .0015 - .003 - .006
  • Spindle Travel | 5"
  • Head Movement | 90° R & L, 45° F & B
  • Max Distance Spindle to Table | 17-1/2"
  • Distance Spindle to Column (Max.) | 19"
  • Distance Spindle to Column (Min.) | 4-1/2"
  • Collet Capacity | 1/8 - 7/8
  • Table Longitudinal Travel | 23-7/8"
  • Table Longitudinal Travel With Powerfeed | 20-2/7"
  • Table Cross Travel | 12-1/2"
  • T-Slots Number and Size | 3 and 5/8"
  • T-Slot Centers | 2-1/2"
  • Work Table Weight Capacity | 550 lbs
  • Travel of Knee | 14-1/2"
  • Travel of Ram | 13-3/8"
  • Motor | 2 HP, 115/230V, 1Ph
  • Overall Dimensions | 57"l x 64"w x 82"h
  • Weight | 2,200 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

  • This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
  • CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
