Jet | SKU:
JET690019

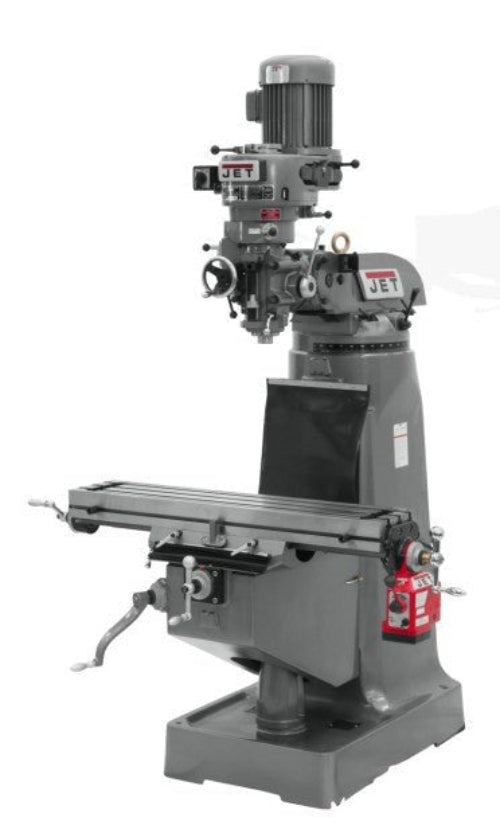

JET 690019 JTM1 Vertical Milling Machine
$12,249.00
Unit price
/
Unavailable
JET 690019 JTM1 Vertical Milling Machine is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
JTM-1 VERTICAL MILLING MACHINE
Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Features:
- Certified Meehanite Castings
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Spindle head is internally cooled
- Satin chrome finished dials
- Heavy duty splined motor drive
- One piece quill pinion and shaft
- Three stage power downfeed with automatic stop
- Heavy duty spindle brake
- Precision hardened and ground ways
- Standard Equipment
- Internal coolant tank built into base for use with coolant system (coolant pump not included)
- Tolerance test sheet included
- One shot lubrication system
- Way covers
- Draw bar
- Tool box with tools
Specifications:
- Style | Step Pulley R8
- Powerfeed | X-Axis
- Spindle Taper (In. x TPI) | R-8
- Table Size | 9"l x 42"w
- Quill Diameter | 3-3/8"
- Number of Spindle Speeds | 16
- Range of Spindle Speeds (RPM) | 80 - 5,440
- Quill Down Feed Rates (IPR) | .0015 - .003 - .006
- Spindle Travel | 5"
- Head Movement (Deg.) | 90° R & L, 45° F & B
- Max Distance Spindle to Table | 17-1/2"
- Distance Spindle to Column (Max.) | 19"
- Distance Spindle to Column (Min.) | 4-1/2"
- Collet Capacity | 1/8 - 7/8
- Table Longitudinal Travel | 23-7/8"
- Table Longitudinal Travel With Powerfeed | 20-2/7"
- Table Cross Travel | 12-1/2"
- T-Slots Number and Size | 3 and 5/8"
- T-Slot Centers | 2-1/2"
- Work Table Weight Capacity | 550 lbs
- Travel of Knee | 14-1/2"
- Travel of Ram | 13-3/8"
- Motor | 2 HP, 230V, 3Ph
- Overall Dimensions | 57"l x 64"w x 82"h
- Weight | 2,200 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
- CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
