Jet | SKU:
JET690036

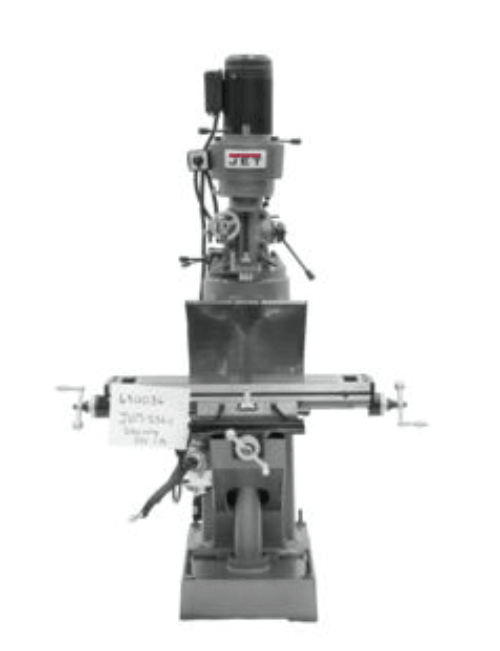

JET 690036 JVM-836 Mill, 1 Phase
$9,299.00
Unit price
/
Unavailable
JET 690036 JVM-836 Mill, 1 Phase is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Jet 690036 JVM-836 VERTICAL MILLING MACHINE
The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty
Features:
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision spindle bearings
- Over 10" of front to back ram travel
- Locks on all movable surfaces
- Hardened and ground precision table
- Head tilts left or right
- Graduated scale on column
- Precision ground dovetail ways
Specifications for Jet JVM-836-1
- Table Size | 7-7/8" x 35-3/4"
- Spindle Taper | R-8
- Diameter of Quill | 3-3/8"
- Number of Spindle Speeds | 5
- Range of Spindle Speeds (RPM) | 240 -1550
- Spindle Travel | 5"
- Head Movement | 90 R & L
- Distance Spindle to Table (max) | 13-3/4"
- Distance Spindle to Column (min) | 5-1/4"
- Distance Spindle to Column (max) | 15-3/4"
- Longitudinal Table Travel (X-axis) | 22-1/4"
- Cross Travel (Y-axis) | 9-1/2"
- Collet Capacity | 1/8" - 7/8"
- T-Slots (Number & Size) | 3 and 5/8"
- T-Slot Centers | 2-1/2"
- Motor | 1-1/2HP, 115/230V, 1Ph Prewired 115V
- Overall Dimensions | 55"w x 52"d x 78"h
- Net Weight | 1544
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Please notify Mile-X Equipment if residential or liftgate is required. Please note that for residential deliveries someone must be there to accept delivery. When ordering the checkout cart will incorrectly state that this ships by UPS.
