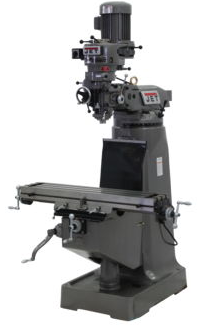

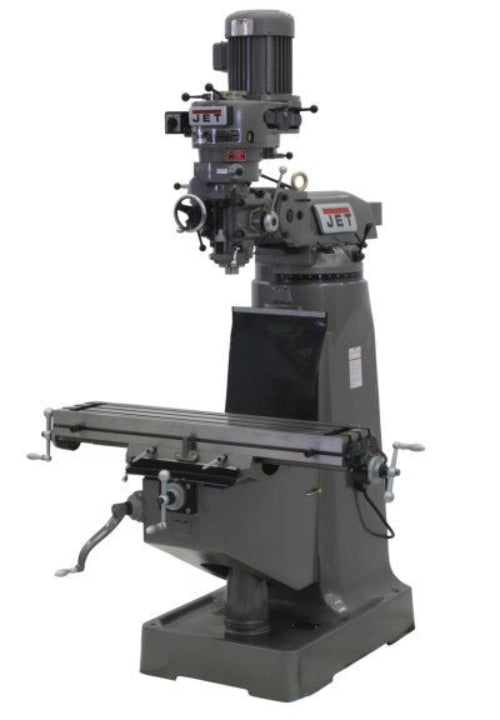

JET 690089 JTM-2 Step Pulley Milling Machine 115/230V 1Ph

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering
ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

Features:

• Certified Meehanite Castings
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision Class 7 spindle bearings
• Spindle head is internally cooled
• Heavy duty splined motor drive
• One piece quill pinion and shaft
• Three stage power downfeed with automatic stop
• Heavy duty spindle brake
• Precision hardened and ground ways
• Precision ground table
• Standard Equipment
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• Tolerance test sheet included
• One shot lubrication system
• Way covers
• Draw bar
• Tool box with tools
• Prewired 230 Volt

Specifications:

• Table Size | 9"l x 42"w
• Quill Diameter | 3-3/8"
• Number of Spindle Speeds | 8
• Range of Spindle Speeds (RPM) | 80 - 2,720
• Quill Down Feed Rates (IPR) | .0015 - .003 - .006
• Spindle Travel | 5"
• Head Movement (Deg.) | 90° R & L, 45° F & B
• Max Distance Spindle to Table | 17-1/2"
• Distance Spindle to Column (Max) | 19"
• Distance Spindle to Column (Min) | 4-1/2"
• Collet Capacity | 1/8 - 7/8
• Table Longitudinal Travel | 23-7/8"
• Table Longitudinal Travel With Powerfeed | 20-2/7"
• Table Cross Travel | 12-1/2"
• T-Slots Number and Size | 3 and 5/8"
• T-Slot Centers | 2-1/2"
• Work Table Weight Capacity | 550 lbs
• Travel of Knee | 14-1/2"
• Travel of Ram | 13-3/8"
• Motor | 2 HP, 115/230V, 1Ph
• Overall Dimensions | 57"l x 64"w x 82"h
• Weight | 2,200 lbs
