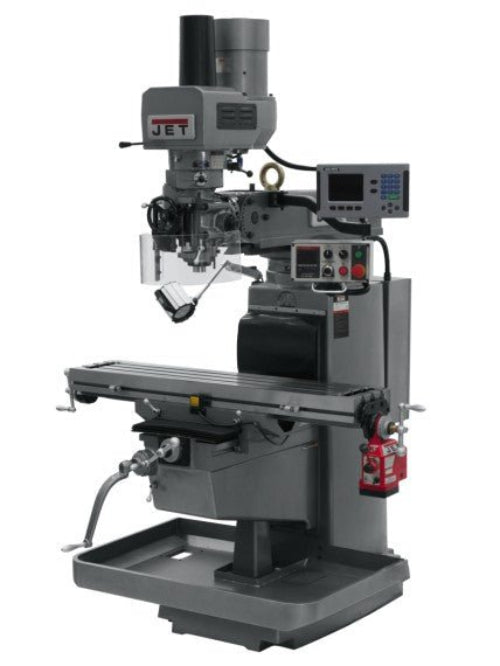

JET 690620 JTM-1050EVS2 Mill With ACU-RITE 200S DRO X-Axis Powerfeed and Air Power Drawbar

New! JET designed Certified Meehanite casting with enhanced ribbing ensures rigidity and tolerance retention. Swing away control box houses an e-stop and puts all
controls at the operators fingertips. The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor.

Durability:

• Meehanite castings
• Precision honed and bored milling head
• High precision class 7 spindle bearings
• Spindle head is internally cooled
• Quick Spindle feed nut
• One-piece quill pinion and shaft
• Three-stage power downfeed with automatic stop
• Heavy-Duty spindle brake
• Precision hardened and ground ways and table
• Turcite B on X & Y Axis
• Adjustable gibs throughout

Safety:

• CSA/CUS Certified
• Spindle Guard
• Electrical Box with 115V outlets
• Internal coolant tank built into casting base

Ease Of Use:

• Automatic Lubrication every 30 minutes with a flow of 3-6 cc reduces maintenance
• Inverter Drive Systems and Emergency Stop located on a Swing Away Control Arm moves all major functions within the Operators reach
• JET exclusive new casting provides the end-user an easier solution to leveling the machine with out raising it up off the floor
• Two 115V outlets on electrical box for DRO or Powerfeeds

Standard Equipment:

• Spindle Safety Guard
• Halogen Machine Lamp
• Dual Locks on All Movable Surfaces
• Chip Pan
• Way Covers
• Draw bar
• Tool box with tools
• R-8 Spindle Taper

Specifications:

• Powerfeed | X-Axis
• Table Size | 10"l x 50"w
• Quill Diameter | 3-3/8"
• Number of Spindle Speeds | Variable
• Range of Spindle Speeds (RPM) | 60 - 4,500
• Quill Down Feed Rates (IPR) | .0015 - .003 - .006
• Spindle Travel | 5"
• Head Movement | 90° R & L, 45° F & B
• Max Distance Spindle to Table | 20-3/4"
• Distance Spindle to Column (Max.) | 26-3/4"
• Distance Spindle to Column (Min.) | 4-3/4"
• Collet Capacity | 1/8 - 7/8
• Table Longitudinal Travel | 35-1/3"
• Table Longitudinal Travel With Powerfeed | 29-7/8"
• Table Cross Travel | 14-3/4"
• T-Slots Number and Size | 3 and 5/8"
• T-Slot Centers | 2-1/2"
• Work Table Weight Capacity | 840 lbs
• Travel of Knee | 16-1/8"
• Travel of Ram | 15-7/8"
• Saddle Width | 11-1/2"
• Column Width | 11-1/2"
• Inverter Type | Delta, B
• Motor | 3HP, 230V, 3Ph
• Weight | 2860 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• Call 800-837-3818 for Sale Price on this Lathe.
