Jet | SKU:
JET708404

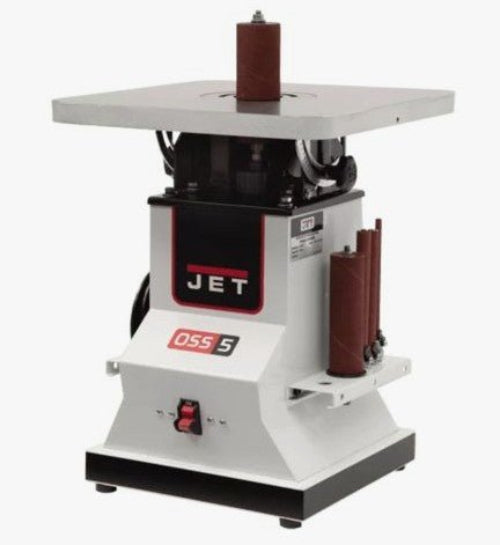

JET 708404 JBOS-5, Benchtop Oscillating Spindle Sander
$719.00
Unit price
/
Unavailable
JET 708404 JBOS-5, Benchtop Oscillating Spindle Sander is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Jet JBOS-5, Benchtop Oscillating Spindle Sander
The JBOS-5 Benchtop Spindle Sander has a 1/2HP motor, and a large 14-1/2” tilting table. A heavy-duty worm gear system provides one-inch oscillating action, which prolongs sleeve life and helps prevent burnishing of the workpiece. Four inserts are provided, and 5 spindles with sanding sleeves.
Features:
- 1" oscillating action reduces friction heat to protect wood and prolong sleeve life
- Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance
- Oscillation gears run in a sealed lubricated box to prolong their life and durability
- Table tilts to 45° to accommodate bevel sanding projects
- Removable on/off safety switch prevents accidental start-up
- Powerful 1/2HP induction motor easily handles the toughest sanding projects
- Built-in 2" dust port keeps dust and debris out of the air
- Spindles have threaded ends for quick, easy changes
- Four table inserts are provided (3/4" and 1" Oblong, 3/4" and 1" Round), to prevent dust and debris from falling into the motor, and help protect operator.
- Built-in storage racks keep spindles and table inserts handy
- Includes four non-skid rubber feet keep machine stable during use
- Includes 1/4", 1/2", 5/8", 1-1/2", 2" spindle assemblies with 100 grit paper
Specifications:
- Part Number | 708404
- Table Size | 14-1/2"l x 14-1/2"w
- Table Tilt | 0 - 45 degrees down
- Spindle Speed | 1725 RPM
- Oscillations Per Minute | 30
- Length of Oscillations | 1"
- Motor Power | ½ HP
- Motor Voltage | 110 V
- Prewired Voltage | 110 V
- Motor Current | 3 A
- Motor Phase | 1 Ph
- Family Description | BenchTop Oscillating Spindle Sander
- Model Number | JBOS-5
- Height | 20.8"
- Width | 17"
- Length | 18.2"
- Net Weight | 80 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery
- When ordering the checkout cart will incorrectly state that this ships by UPS
- Call 1.800.837.3818 or Click Here to eMail us for Sale Pricing
