Jet | SKU:
JET708595

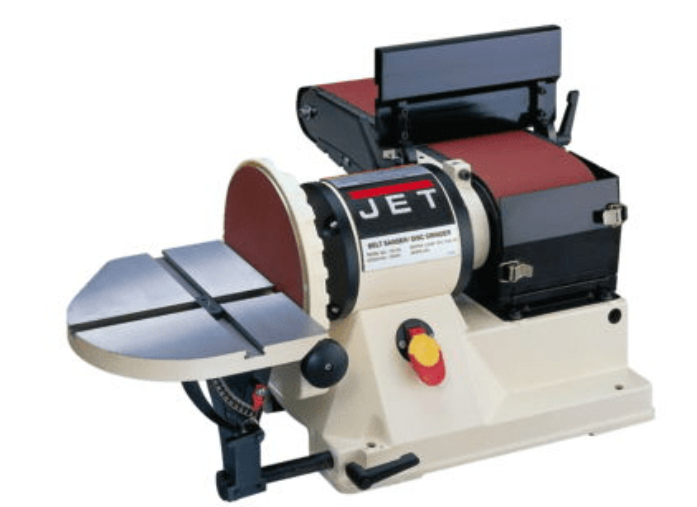

JET 708595 JSG-96, Benchtop 6" x 48" Belt / 9" Disc Sander
$1,055.00
Unit price
/
Unavailable
JET 708595 JSG-96, Benchtop 6" x 48" Belt / 9" Disc Sander is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Jet 708595 JSG-96, Benchtop 6" x 48" Belt / 9" Disc Sander
The unique JSG-96 Benchtop Sander combines a 9" disc and 6" x 48" belt for workshop versatility. While small and compact, the JSG-96 offers industrial 3/4 HP power while taking up a small footprint on your bench. A quick-release belt tension lever makes belt changes fast and easy while a quick-lock dust cover allows fast disc changes.
Features:
- Large cast iron table has preset stops at 90° and 45° to let you use the belt sander vertically, horizontally or anywhere in between
- EXCLUSIVE dual thumbscrew belt tracking adjustment locks to keep belt on track during use
- Graphite covered steel platen runs cooler increasing machine and belt life
- Specially designed belt guard allows full use of the 6" belt width and length
- Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
- Tracking adjustment knob with quick-lock handle keeps belt on track during use
- Quick-release belt tension lever makes belt changes fast and easy
- Quick-lock dust cover allows fast disc changes
- Single 4" dust port on the back of the base collects dust effectively from both the belt and disc
- Powerful 3/4HP motor easily handles the toughest sanding operations
- Built-in handles for easier portability
Specifications:
- Part Number | 708595
- Style | Benchtop
- Belt Size | 48"l x 6"w
- Belt Speed | 2258 sfpm
- Belt Table Size | 11"l x 5-1/2"w
- Belt Table Tilt | 10 ° up, 45 ° down
- Disc Diameter | 9"
- Disc Speed | 1725 RPM
- Disc Table Size | 12"l x 7-1/2"w
- Disc Table Tilt | 10 ° up, 45 ° down
- Dust Port Outside Diameter | 4"
- Motor Power | ¾ HP
- Motor Voltage | 115V
- Prewired Voltage | 115 V
- Motor Current | 11 A
- Motor Phase | 1 Ph
- Family Description | COMBINATION 6" X 48" BELT / 9" DISC SANDER
- Model Number | JSG-96
- Overall Dimensions | 16" x 29" x 28-1/2"
- Height | 16.1"
- Width | 24.9"
- Length | 28.2"
- Net Weight | 100 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Please notify Mile-X Equipment if residential or liftgate is required. Please note that for residential deliveries someone must be there to accept delivery. When ordering the checkout cart will incorrectly state that this ships by UPS.
