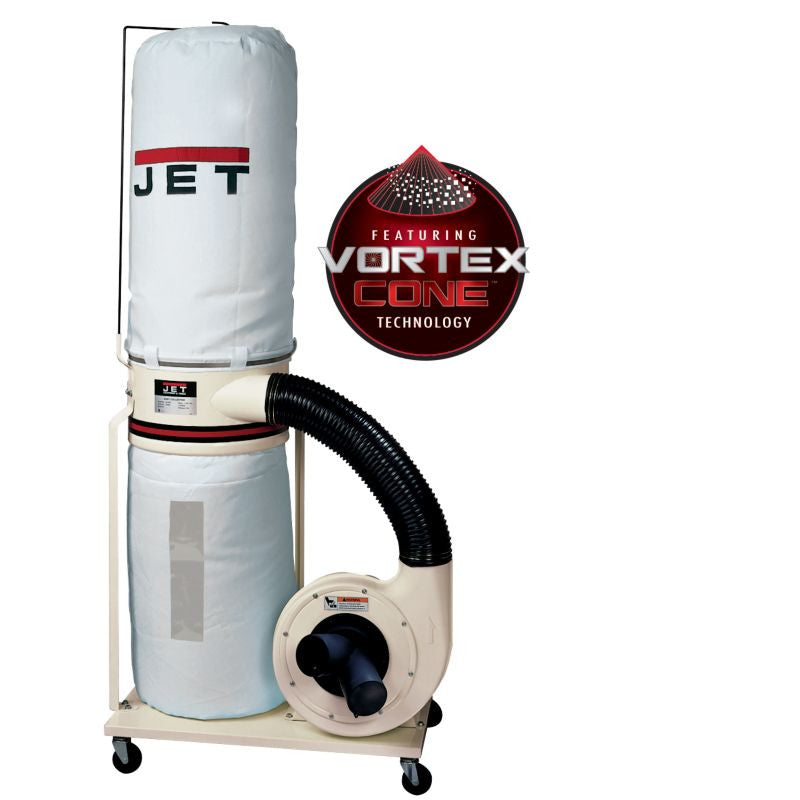

Jet DC-1100VX-BK Dust Collector

The JET DC-1100VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have an elastic band for fast installation and removal. Swivel casters offer maneuverability within the shop.

Jet Dust Collector Features:

• Vortex Cone improves chip separation and collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability

Specifications:

• Part Number | 708657K
• Sound Rating | 70 - 80 dB
• 1-Hose Connection Diameter | 6"
• 2-Hoses Connection Diameter | 4"
• Bag Diameter | 20"
• Filter Bag/Canister Length | 32"
• Collection Bag Capacity | 5.3 cubic foot
• Collection Bag Length | 30"
• Air Flow @ 4" | 1,100 cu.ft/min
• Static Pressure | 10½ inch of water
• Particle Size (Micron) | 96% of 30 micron particles
• Air Inlet | (1) at 6" or (2) at 4"
• Impeller Diameter | 11"
• Impeller Material | Steel
• Separator Tank Diameter | 20"
• Separator Tank Height | 10"
• Motor Power | 1½ HP
• Motor Phase | 1 Ph
• Motor Voltage | 115 / 230 V
• Prewired Voltage | 115V
• Motor Current | 11 / 5.5 A
• Model Number | DC-1100VX-BK
• Overall Dimensions | 37 x 22.5 x 22 (shipped), 37 x 22.5 x 79 (assembled)
• Height | 79"
• Width | 22.5"
• Length | 37"
• Net Weight | 127 lbs
