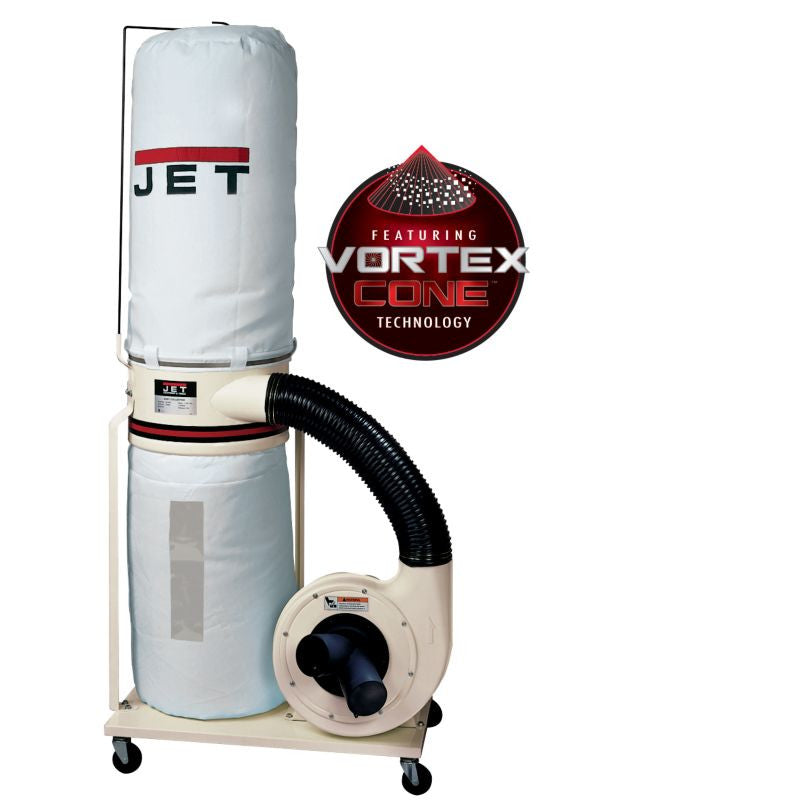

Jet DC-1100VX-5M Dust Collector
The JET DC-1100VX-5M features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.
Features:
- Vortex Cone improves chip separation and collector bag packing efficiency
- Eliminates premature filter clogging for sustained performance
- Single-stage design for economical and quiet operation
- Industrial controls designed for years of trouble-free use
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- High air velocity (CFM) design stands up to any competitive specifications
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Includes four casters for maneuverability and total portability
Specifications:
- Number of Air Inlets | 1 at 6", 2 at 4"
- 1-Hose Connection Diameter | 6"
- 2-Hoses Connection Diameter | 4"
- Air Flow @ 4" (CFM) | 1100
- Style | Bag
- Velocity @ 4" (FPM) | 12,571
- Static Pressure (Wc.) | 10-1/2
- Efficiency (Micron) | 5
- Filter Bag/Canister Length | 32"
- Collection Bag Capacity (Cu. Ft.) | 5-3/10
- Collection Bag Length | 30"
- Bag Diameter | 20"
- Impeller Material | Steel
- Impeller Diameter | 11"
- Sound Rating (Db.) | 70 - 80
- Motor Power (HP) | 1-1/2
- Motor Phase (PH) | 1
- Motor Voltage (V.) | 115/230
- Prewired Voltage (V.) | 115
- Motor Amps | 11/5.5
